改造sentinel-dashboard1.8.5持久化配置到Nacos2.1.1


前言

sentinel-dashboard官方未提供动态数据源的支持,需要自行整合。官方虽未提供实现,但是却提供了整合样例代码,从而实现dashboard与nacos的互通。

以下是官方文档的描述:

目前控制台的规则推送也是通过 规则查询更改 HTTP API 来更改规则。这也意味着这些规则仅在内存态生效,应用重启之后,该规则会丢失。

以上是原始模式。当了解了原始模式之后,我们非常鼓励您通过 动态规则 并结合各种外部存储来定制自己的规则源。我们推荐通过动态配置源的控制台来进行规则写入和推送,而不是通过 Sentinel 客户端直接写入到动态配置源中。在生产环境中,我们推荐 push 模式,具体可以参考:在生产环境使用 Sentinel

注:若要使用集群流控功能,则必须对接动态规则源,否则无法正常使用。您也可以接入 AHAS Sentinel 快速接入全自动托管、高可用的集群流控能力。

Sentinel 同时还提供应用维度规则推送的示例页面(流控规则页面,前端路由为 /v2/flow),用户改造控制台对接配置中心后可直接通过 v2 页面推送规则至配置中心。Sentinel 抽取了通用接口用于向远程配置中心推送规则以及拉取规则:

  • DynamicRuleProvider : 拉取规则(应用维度)
  • DynamicRulePublisher : 推送规则(应用维度)

用户只需实现 DynamicRuleProvider 和 DynamicRulePublisher 接口,并在 v2 的 controller 中通过 @Qualifier 注解替换相应的 bean 即可实现应用维度推送。我们提供了 Nacos 和 Apollo 的示例,改造详情可参考 应用维度规则推送示例

官方文档为我们指明了方向,下面我们就动手改造sentinel dashboard。

准备

  1. 先通过 Github 拉取 Sentinel 源码,GitHub 地址:https://github.com/alibaba/Sentinel
  2. 导入到IDEA中
  1. 进入 sentinel-dashboard 模块,所有的修改都在该模块下。

开始

后端代码调整

1 . 修改pom.xml

<!-- for Nacos rule publisher sample -->
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
<!--            <scope>test</scope>-->
</dependency>

找到以上依赖,将scope删除或者注释掉

  1. 修改配置文件

找到配置文件 application.properties 文件,在末尾添加一下配置:

sentinel.nacos.enable=true
sentinel.nacos.server-addr=localhost:8848
sentinel.nacos.namespace=
sentinel.nacos.username=nacos
sentinel.nacos.password=nacos
sentinel.nacos.group-id=SENTINEL-GROUP

注意:如果需要将规则持久化到nacos的publish命名空间下,此处的填空就好,不要写publish,否则会导致,控制台无法查询到配置信息

  1. 调整包结构

在com.alibaba.csp.sentinel.dashboard.rule包下创建nacos包,并在该包下根据以下结构新建包

├─auth #存放授权规则相关类
├─degrade #存放降级规则相关类
├─flow #存放限流规则相关类
├─gateway #存放网关限流规则相关类
│  ├─api
│  └─flow
├─param #存放热点规则相关类
└─system #存放系统规则相关类

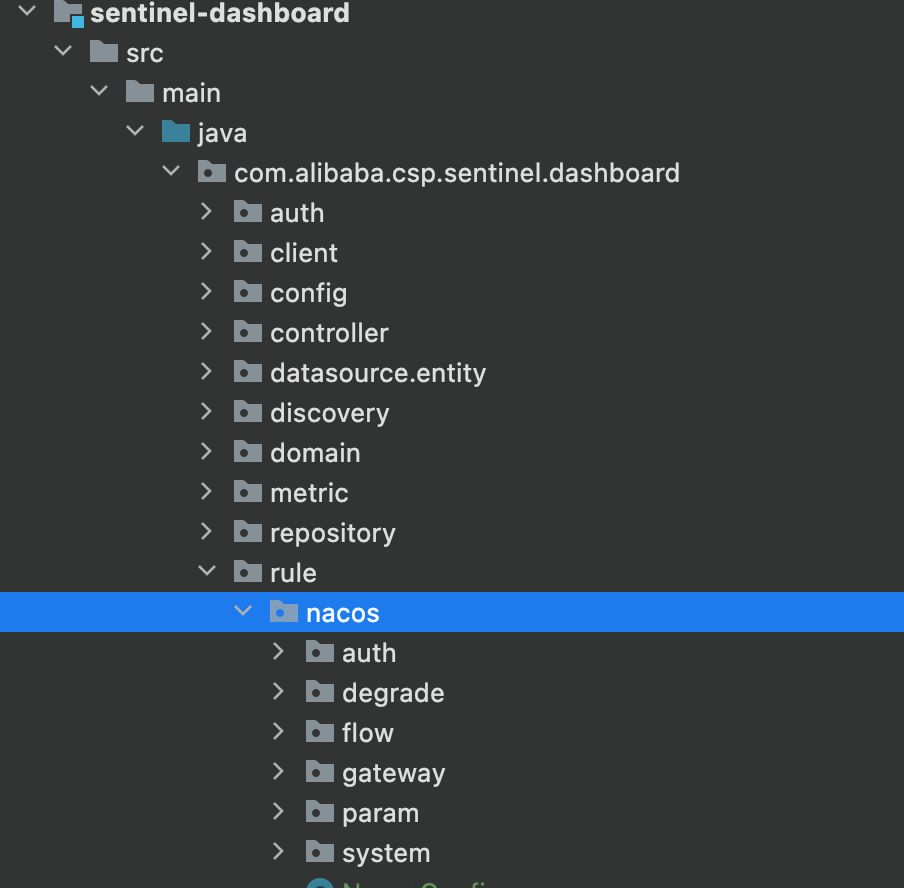

如下图:

  1. 增加配置

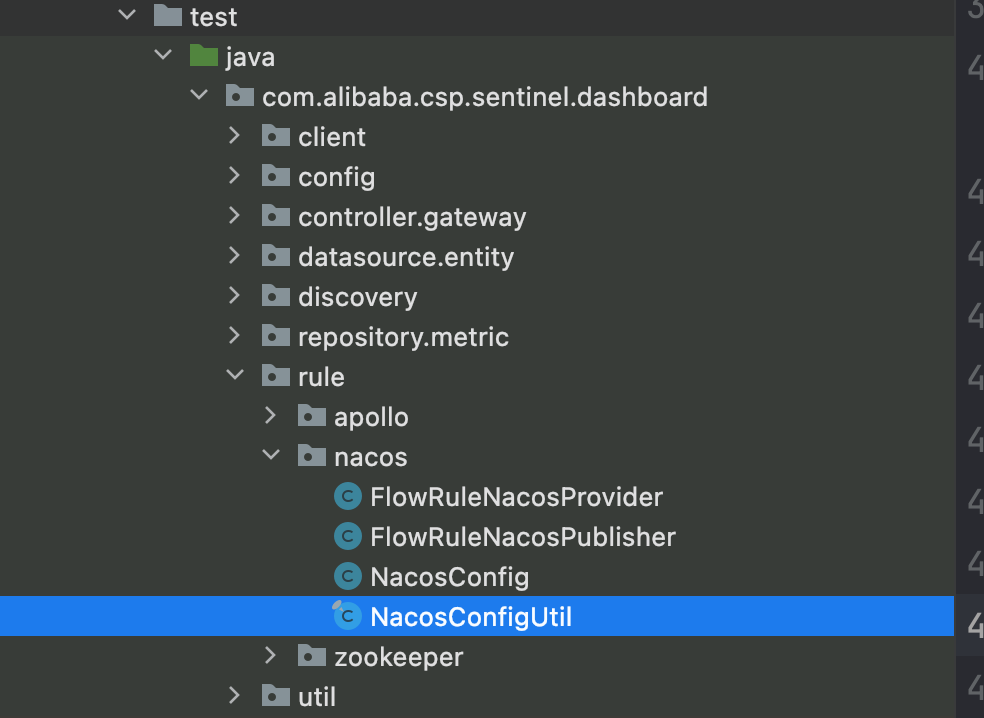

如上图所示,将test包下的NacosConfigUtil、NacosConfig、FlowRuleNacosPublisher、FlowRuleNacosProvider复制到刚刚新建的nacos包下,如下图所示:

  1. 增加SentinelNacosProperties文件

在com.alibaba.csp.sentinel.dashboard.rule.nacos包下创建SentinelNacosProperties.java文件,代码如下:

package com.alibaba.csp.sentinel.dashboard.rule.nacos;

import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "sentinel.nacos")
@ConditionalOnProperty(name = "sentinel.nacos.enable", havingValue = "true")
public class SentinelNacosProperties {

    private String serverAddr;

    private String namespace;

    private String username;

    private String password;

    private String groupId = "SENTINEL_GROUP";

    public String getServerAddr() {
        return serverAddr;
    }

    public void setServerAddr(String serverAddr) {
        this.serverAddr = serverAddr;
    }

    public String getNamespace() {
        return namespace;
    }

    public void setNamespace(String namespace) {
        this.namespace = namespace;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getGroupId() {
        return groupId;
    }

    public void setGroupId(String groupId) {
        this.groupId = groupId;
    }
}
  1. 修改NacosConfig文件

修改后的代码如下:

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.alibaba.csp.sentinel.dashboard.rule.nacos;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.gateway.ApiDefinitionEntity;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.gateway.GatewayFlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.*;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.fastjson.JSON;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigFactory;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.AutoConfigureAfter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.List;
import java.util.Properties;

/**
 * @author Eric Zhao
 * @since 1.4.0
 */
@Configuration
public class NacosConfig {

    //====================流控规则 Converter====================
    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    //====================降级规则 Converter====================
    @Bean
    public Converter<List<DegradeRuleEntity>, String> degradeRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<DegradeRuleEntity>> degradeRuleEntityDecoder() {
        return s -> JSON.parseArray(s, DegradeRuleEntity.class);
    }

    //====================热点规则 Converter====================
    @Bean
    public Converter<List<ParamFlowRuleEntity>, String> paramsRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<ParamFlowRuleEntity>> paramsRuleEntityDecoder() {
        return s -> JSON.parseArray(s, ParamFlowRuleEntity.class);
    }

    //====================系统规则 Converter====================
    @Bean
    public Converter<List<SystemRuleEntity>, String> systemRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<SystemRuleEntity>> systemRuleEntityDecoder() {
        return s -> JSON.parseArray(s, SystemRuleEntity.class);
    }

    //====================授权规则 Converter====================
    @Bean
    public Converter<List<AuthorityRuleEntity>, String> authRuleEntityEncoder() {
        return JSON::toJSONString;
    }


    @Bean
    Converter<String, List<AuthorityRuleEntity>> authRuleEntityDecoder() {
        return s -> JSON.parseArray(s, AuthorityRuleEntity.class);
    }


    //====================网关API限流规则 Converter====================
    @Bean
    public Converter<List<ApiDefinitionEntity>, String> apiDefinitionEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<ApiDefinitionEntity>> apiDefinitionEntityDecoder() {
        return s -> JSON.parseArray(s, ApiDefinitionEntity.class);
    }

    //====================网关限流规则 Converter====================
    @Bean
    public Converter<List<GatewayFlowRuleEntity>, String> gatewayFlowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<GatewayFlowRuleEntity>> gatewayFlowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, GatewayFlowRuleEntity.class);
    }

    @Bean
    public ConfigService nacosConfigService(SentinelNacosProperties sentinelNacosProperties) throws Exception {
        Properties properties = new Properties();
        // nacos 地址
        properties.put(PropertyKeyConst.SERVER_ADDR, sentinelNacosProperties.getServerAddr());
        // 命令空间
        properties.put(PropertyKeyConst.NAMESPACE, sentinelNacosProperties.getNamespace());
        // nacos 账号
        properties.put(PropertyKeyConst.USERNAME, sentinelNacosProperties.getUsername());
        // nacos 账号密码
        properties.put(PropertyKeyConst.PASSWORD, sentinelNacosProperties.getPassword());
        return ConfigFactory.createConfigService(properties);
    }


}

请自行与源文件做对比

  1. 修改NacosConfigUtil文件

修改后的代码如下:

package com.alibaba.csp.sentinel.dashboard.rule.nacos;

/**
 * @author Eric Zhao
 * @since 1.4.0
 */
public final class NacosConfigUtil {

    public static final String GROUP_ID = "SENTINEL_GROUP";

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";
    public static final String PARAM_FLOW_DATA_ID_POSTFIX = "-param-rules";
    public static final String DEGRADE_DATA_ID_POSTFIX = "-degrade-rules";
    public static final String SYS_DATA_ID_POSTFIX = "-system-rules";
    public static final String AUTH_DATA_ID_POSTFIX = "-auth-rules";

    public static final String CLUSTER_MAP_DATA_ID_POSTFIX = "-cluster-map";

    /**
     * cc for `cluster-client`
     */
    public static final String CLIENT_CONFIG_DATA_ID_POSTFIX = "-cc-config";
    /**
     * cs for `cluster-server`
     */
    public static final String SERVER_TRANSPORT_CONFIG_DATA_ID_POSTFIX = "-cs-transport-config";
    public static final String SERVER_FLOW_CONFIG_DATA_ID_POSTFIX = "-cs-flow-config";
    public static final String SERVER_NAMESPACE_SET_DATA_ID_POSTFIX = "-cs-namespace-set";

    public static final String GATEWAY_FLOW_DATA_ID_POSTFIX = "-gateway-flow-rules";
    public static final String GATEWAY_API_DATA_ID_POSTFIX = "-gateway-api-rules";


    private NacosConfigUtil() {}
}
  1. 在前面创建的auth包下创建以下两个类:
  • AuthorityRuleNacosProvider 用于从nacos拉取配置
  • AuthorityRuleNacosPublisher 用于控制台向nacos推送配置

参照上面拷贝的FlowRuleNacosProvider和FlowRuleNacosPublisher文件中的代码创建以上两个文件,完整的代码如下:

@Component("authRuleNacosProvider")
public class AuthorityRuleNacosProvider implements DynamicRuleProvider<List<AuthorityRuleEntity>> {

    private static final Logger LOGGER = LoggerFactory.getLogger(AuthorityRuleNacosProvider.class);

    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<String, List<AuthorityRuleEntity>> converter;

    @Override
    public List<AuthorityRuleEntity> getRules(String appName) throws Exception {
        String rules = configService.getConfig(appName + NacosConfigUtil.AUTH_DATA_ID_POSTFIX,
                NacosConfigUtil.GROUP_ID, 3000);
        LOGGER.info("get auth rule from nacos, rules : {}", rules);
        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}
@Component("authRuleNacosPublisher")
public class AuthorityRuleNacosPublisher implements DynamicRulePublisher<List<AuthorityRuleEntity>> {

    private static final Logger LOGGER = LoggerFactory.getLogger(AuthorityRuleNacosPublisher.class);

    @Autowired
    private ConfigService configService;

    @Autowired
    private Converter<List<AuthorityRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<AuthorityRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }
        String convertedRule = converter.convert(rules);
        LOGGER.info("sentinel dashboard publisher auth rules : {}", convertedRule);
        configService.publishConfig(app + NacosConfigUtil.AUTH_DATA_ID_POSTFIX,
                NacosConfigUtil.GROUP_ID, convertedRule, ConfigType.JSON.getType());
    }
}
  1. 依次创建降级规则、网关规则、热点规则、系统规则等文件

代码大同小异,不同点就是Converter<List<AuthorityRuleEntity>, String> converter中的entity不同,具体的可以回看NacosConfig中的配置,另一个就是data-id不同。这里就不一一罗列代码了。

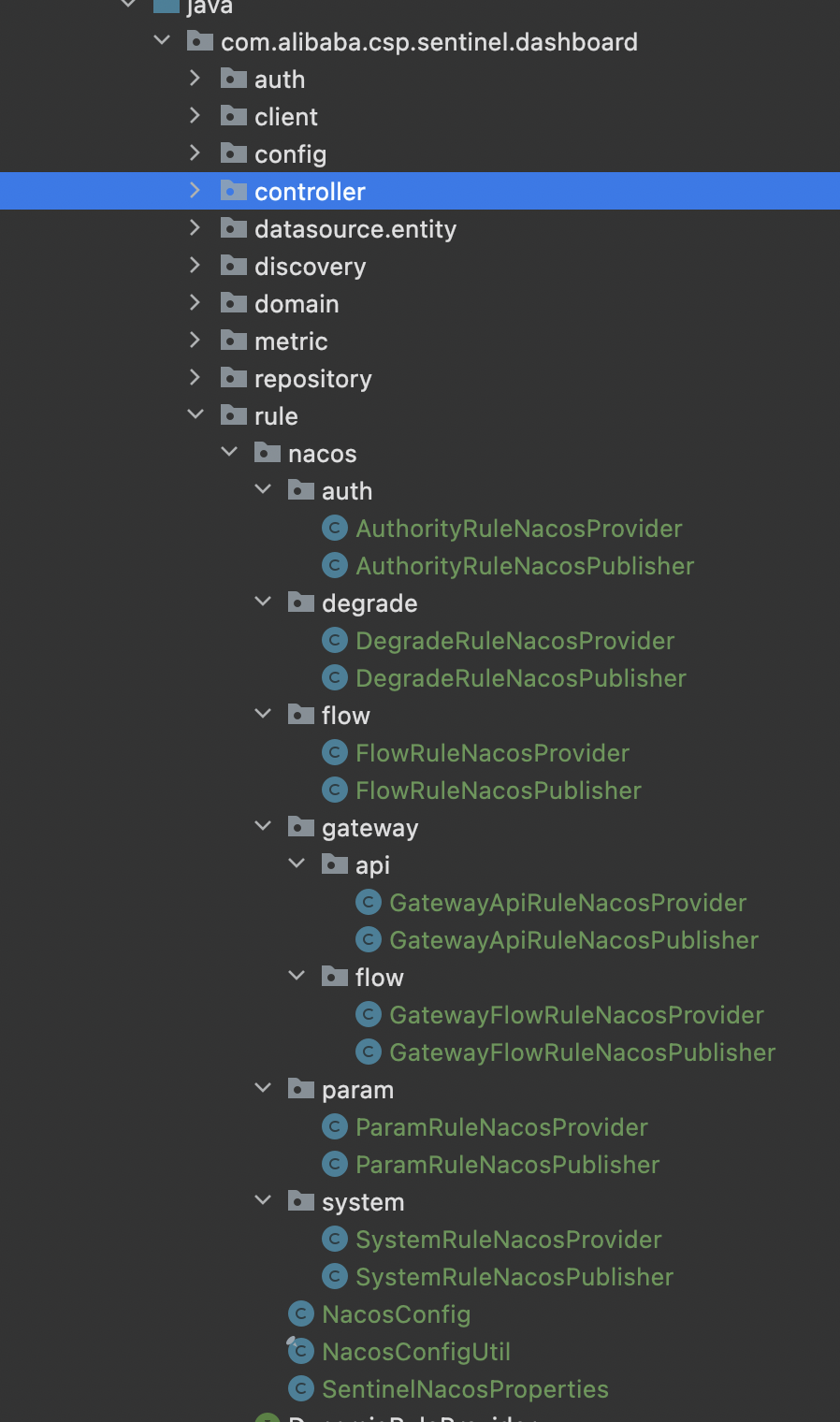

最终的代码结构如下图:

  1. FlowControllerV2

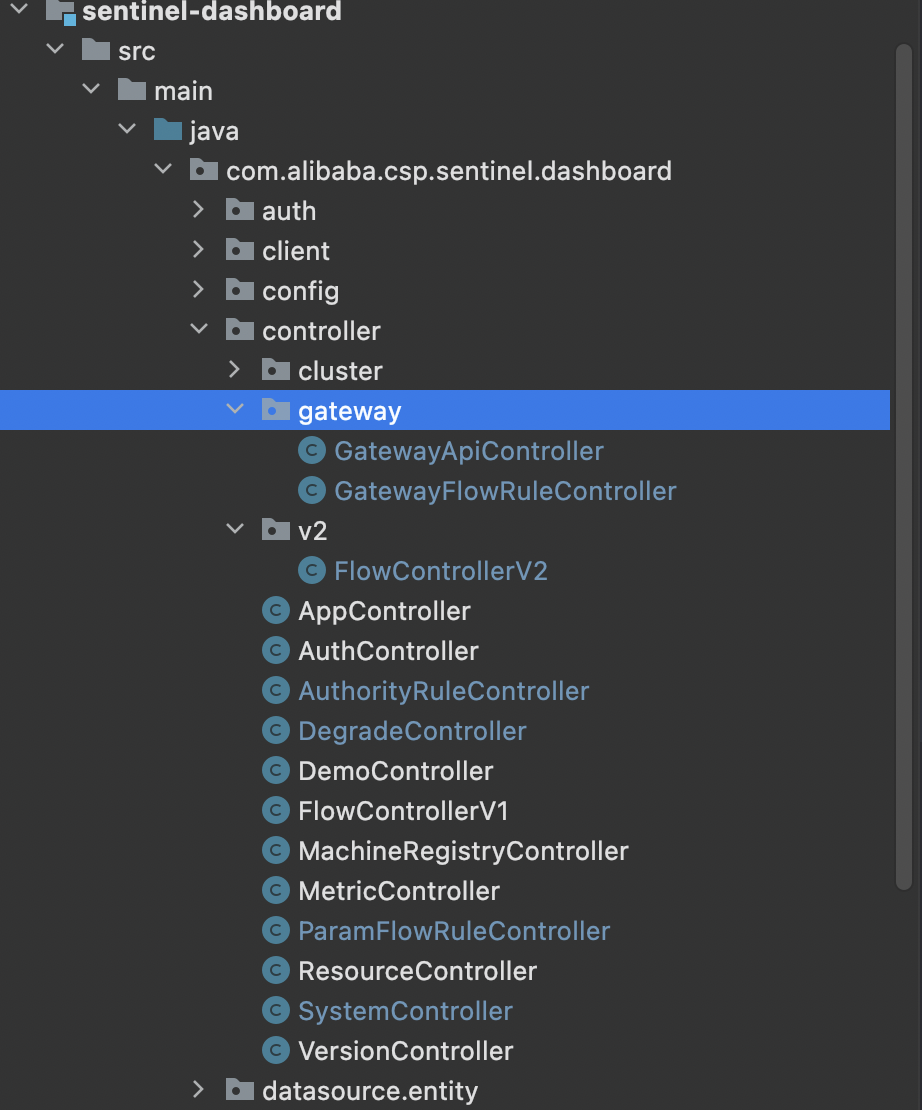

修改 com.alibaba.csp.sentinel.dashboard.controller.v2包下的FlowControllerV2,内容如下:

//    @Autowired
//    @Qualifier("flowRuleDefaultProvider")
//    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
//    @Autowired
//    @Qualifier("flowRuleDefaultPublisher")
//    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

    @Autowired
    @Qualifier("flowRuleNacosProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

注释掉原来的ruleProvider和rulePublisher,引入我们自己创建的。

  1. AuthorityRuleController

修改 com.alibaba.csp.sentinel.dashboard.controller包下的AuthorityRuleController,内容如下:

// 增加以下代码
@Autowired
@Qualifier("authRuleNacosProvider")
private DynamicRuleProvider<List<AuthorityRuleEntity>> ruleProvider;

@Autowired
@Qualifier("authRuleNacosPublisher")
private DynamicRulePublisher<List<AuthorityRuleEntity>> rulePublisher;
@GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<AuthorityRuleEntity>> apiQueryAllRulesForMachine(@RequestParam String app,
                                                                        @RequestParam String ip,
                                                                        @RequestParam Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app cannot be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip cannot be null or empty");
        }
        if (port == null || port <= 0) {
            return Result.ofFail(-1, "Invalid parameter: port");
        }
        if (!appManagement.isValidMachineOfApp(app, ip)) {
            return Result.ofFail(-1, "given ip does not belong to given app");
        }
        try {
// 注释掉下面一行代码
//            List<AuthorityRuleEntity> rules = sentinelApiClient.fetchAuthorityRulesOfMachine(app, ip, port);
// 增加以下代码
            List<AuthorityRuleEntity> rules = ruleProvider.getRules(app);
// 尤其注意增加以下if逻辑,不然运行时会报错,这里踩的坑
            if (rules != null && !rules.isEmpty()) {
                for (AuthorityRuleEntity entity : rules) {
                    entity.setApp(app);
                }
            }
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying authority rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }
private boolean publishRules(String app, String ip, Integer port) {
        List<AuthorityRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
// 注释掉这一行
//        return sentinelApiClient.setAuthorityRuleOfMachine(app, ip, port, rules);
// 增加以下代码
        try {
            rulePublisher.publish(app, rules);
            return true;
        } catch (Exception e) {
            return false;
        }
    }

需要增加以及改动的代码,已经在代码上加了注释,请仔细阅读。

  1. 同理修改其他几个controller

如图所示,需要另行修改其他几个controller,改动的位置大致相同,分别注入对应的provider和publisher,请自行修改。

前端代码修改

  1. sidebar.html

找到webapp/resources/app/scripts/directives/sidebar/sidebar.html文件,找到以下代码:

 <li ui-sref-active="active" ng-if="!entry.isGateway">
  <a ui-sref="dashboard.flowV1({app: entry.app})">
    <i class="glyphicon glyphicon-filter"></i>&nbsp;&nbsp;流控规则</a>
</li>

修改为:

<li ui-sref-active="active" ng-if="!entry.isGateway">
    <a ui-sref="dashboard.flow({app: entry.app})">
        <i class="glyphicon glyphicon-filter"></i>&nbsp;&nbsp;流控规则</a>
</li>
  1. flow_service_v1.js

找到webapp/resources/app/scripts/services/flow_service_v1.js文件,找到以下代码:

this.newRule = function (rule) {
        var param = {
            resource: rule.resource,
            limitApp: rule.limitApp,
            grade: rule.grade,
            count: rule.count,
            strategy: rule.strategy,
            refResource: rule.refResource,
            controlBehavior: rule.controlBehavior,
            warmUpPeriodSec: rule.warmUpPeriodSec,
            maxQueueingTimeMs: rule.maxQueueingTimeMs,
            app: rule.app,
            ip: rule.ip,
            port: rule.port
        };

        return $http({
            url: '/v1/flow/rule',
            data: rule,
            method: 'POST'
        });
    };

修改为:

this.newRule = function (rule) {
        var param = {
            resource: rule.resource,
            limitApp: rule.limitApp,
            grade: rule.grade,
            count: rule.count,
            strategy: rule.strategy,
            refResource: rule.refResource,
            controlBehavior: rule.controlBehavior,
            warmUpPeriodSec: rule.warmUpPeriodSec,
            maxQueueingTimeMs: rule.maxQueueingTimeMs,
            app: rule.app,
            ip: rule.ip,
            port: rule.port
        };

        return $http({
            url: '/v2/flow/rule',
            data: rule,
            method: 'POST'
        });
    };

将url由v1修改为v2

  1. identity.js

找到webapp/resources/app/scripts/controllers/identity.js文件,找到以下代码:

function saveFlowRule() {
      if (!FlowService.checkRuleValid(flowRuleDialogScope.currentRule)) {
        return;
      }
      FlowService.newRule(flowRuleDialogScope.currentRule).success(function (data) {
        if (data.code === 0) {
          flowRuleDialog.close();
          let url = '/dashboard/flow/' + $scope.app;
          $location.path(url);
        } else {
          alert('失败:' + data.msg);
        }
      }).error((data, header, config, status) => {
          alert('未知错误');
      });
    }

修改为:

function saveFlowRule() {
      if (!FlowService.checkRuleValid(flowRuleDialogScope.currentRule)) {
        return;
      }
      FlowService.newRule(flowRuleDialogScope.currentRule).success(function (data) {
        if (data.code === 0) {
          flowRuleDialog.close();
          let url = '/dashboard/v2/flow/' + $scope.app;
          $location.path(url);
        } else {
          alert('失败:' + data.msg);
        }
      }).error((data, header, config, status) => {
          alert('未知错误');
      });
    }
  1. flow_v2.html 找到webapp/resources/app/views/flow_v2.html文件,找到以下代码:
<a class="btn btn-default-inverse" style="float: right; margin-right: 10px;" ui-sref="dashboard.flowV1({app: app})">
      回到单机页面
</a>

将其注释掉或删掉。

至此sentinel dashboard持久化规则到nacos改造完毕,实现了双向同步。改造的过程中,省略了一部分代码,是因为几乎类似,为了节省篇幅,相信聪明的你,一定会自我完成的,如果无法独立完成,请在下方评论区留言哦。

欢迎关注我的公众号:程序员L札记

更多原创文章,请扫码关注我的微信公众号
更多原创文章,请扫码关注我的微信公众号

分类:

后端

标签:

后端

作者介绍

程序员L札记
V1
