如何使用必应地图 WPF 控件

如何使用必应地图 WPF 控件

如何使用必应地图 WPF 控件

作者:WPFDevelopersOrg - 驚鏵

原文链接:https://github.com/WPFDevelopersOrg/WPFDevelopers

  • 框架使用.NET40
  • Visual Studio 2019;
  • Bing Maps WPF 控件需要 .NET Framework 4.0Windows SDK。这两个组件都随Microsoft Visual Studio VisualC#Visual Basic Express Edition一起安装。
  • 下面演示如何使用。
  • 引用 Microsoft.Maps.MapControl.WPF.dll 也可以在nuget上找到。
  • 添加命名空间。
  • 新建AMapTitleLayer.cs继承图层MapTileLayer实现加载高德地图瓦片.

1)新建 AMapTitleLayer.cs 代码如下:

using Microsoft.Maps.MapControl.WPF;
using System;

namespace WPFDevelopers.Samples.ExampleViews
{
    public class AMapTitleLayer : MapTileLayer
    {
        public AMapTitleLayer()
        {
            TileSource = new AMapTileSource();
        }

        public string UriFormat
        {
            get { return TileSource.UriFormat; }
            set { TileSource.UriFormat = value; }
        }
    }
    public class AMapTileSource : TileSource
    {
        public override Uri GetUri(int x, int y, int zoomLevel)
        {
            string url = string.Format("http://wprd01.is.autonavi.com/appmaptile?x={0}&y={1}&z={2}&lang=zh_cn&size=1&scl=1&style=7", x, y, zoomLevel);
            return new Uri(url, UriKind.Absolute);
        }
    }
}

2)新建PushpinModel.cs 代码如下:

using Microsoft.Maps.MapControl.WPF;

namespace WPFDevelopers.Samples.ExampleViews
{
    public class PushpinModel
    {
        public Location Location { getset; }
        public int ID { getset; }
        public string Title { getset; }
    }
}

3)新建 BingAMapExample.xaml 代码如下:

<UserControl x:Class="WPFDevelopers.Samples.ExampleViews.BingAMapExample"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:WPFDevelopers.Samples.ExampleViews"
             xmlns:map="clr-namespace:Microsoft.Maps.MapControl.WPF;assembly=Microsoft.Maps.MapControl.WPF"
             xmlns:mapOverlays="clr-namespace:Microsoft.Maps.MapControl.WPF.Overlays;assembly=Microsoft.Maps.MapControl.WPF"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">

    <UserControl.Resources>
        <LinearGradientBrush x:Key="MainColor" EndPoint="0.5,1" StartPoint="0.5,0">
            <GradientStop Color="#FF020621" Offset="0"/>
            <GradientStop Color="#FF364BD8" Offset="1"/>
            <GradientStop Color="#FF5A6BD8" Offset="0.499"/>
        </LinearGradientBrush>
        <ControlTemplate x:Key="CarTemplate" TargetType="map:Pushpin">
            <Grid ToolTip="物资车辆">
                <Ellipse Width="35" Height="35" Fill="White" StrokeThickness="3" Stroke="Red"/>
                <Image Source="pack://application:,,,/WPFDevelopers.Samples;component/Images/AMap/Car2.png" Width="25" Height="25"/>
            </Grid>

        </ControlTemplate>

        <SineEase x:Key="SineOut" EasingMode="EaseOut" />

        <Storyboard x:Key="AnimateRound" RepeatBehavior="Forever">
            <DoubleAnimation Storyboard.TargetProperty="ScaleX" Storyboard.TargetName="Scale"
                             Duration="0:0:01" To="2"
                             EasingFunction="{StaticResource SineEaseOut}" />

            <DoubleAnimation Storyboard.TargetProperty="ScaleY" Storyboard.TargetName="Scale"
                             Duration="0:0:01" To="2"
                             EasingFunction="{StaticResource SineEaseOut}" />

            <DoubleAnimation Storyboard.TargetProperty="Opacity"
                             Duration="0:0:01" To="0"
                             EasingFunction="{StaticResource SineEaseOut}" />

        </Storyboard>
        <Style x:Key="alarmStyle" TargetType="map:Pushpin">
            <Setter Property="PositionOrigin" Value="Center"/>
            <Setter Property="Width" Value="60"/>
            <Setter Property="Height" Value="60"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="map:Pushpin">
                        <Grid>
                            <Ellipse Height="40" Width="40" Fill="Red" RenderTransformOrigin="0.5,0.5">
                                <Ellipse.OpacityMask>
                                    <RadialGradientBrush>
                                        <GradientStop Offset="0" Color="Transparent" />
                                        <GradientStop Offset="1" Color="Black" />
                                    </RadialGradientBrush>
                                </Ellipse.OpacityMask>
                                <Ellipse.RenderTransform>
                                    <ScaleTransform x:Name="Scale"/>
                                </Ellipse.RenderTransform>
                                <Ellipse.Triggers>
                                    <EventTrigger RoutedEvent="Loaded">
                                        <BeginStoryboard Storyboard="{StaticResource AnimateRound}">
                                        </BeginStoryboard>
                                    </EventTrigger>
                                </Ellipse.Triggers>
                            </Ellipse>
                            <Viewbox Width="30" Height="30"
                                     VerticalAlignment="Top"
                                     HorizontalAlignment="Center"
                                     Margin="20,0,0,0">

                                <Path Data="{StaticResource PathFlag}" Fill="Orange"/>
                            </Viewbox>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>

</Style>
    </UserControl.Resources>
    <Grid>
        <map:Map x:Name="map" ZoomLevel="5" Center="39.9132801985722,116.392009995601"
                  CredentialsProvider="AgXB7m7fVYxKpjEZV9rGdrRPvLgawYhi4Wvw99kk4RDspoalC3B_vQ8GKJAoxrve">

            <map:Map.Mode>
                <map:MercatorMode/>
            </map:Map.Mode>
            <local:AMapTitleLayer/>
            <map:MapItemsControl ItemsSource="{Binding PushpinArray,RelativeSource={RelativeSource AncestorType=local:BingAMapExample}}">
                <map:MapItemsControl.ItemTemplate>
                    <DataTemplate>
                        <map:Pushpin Location="{Binding Location}" Cursor="Hand"
                                     MouseDown="Pushpin_MouseDown"
                                     ToolTip="{Binding Title}"
                                         Background="Red">

                            <TextBlock Text="{Binding ID}"/>
                        </map:Pushpin>
                    </DataTemplate>
                </map:MapItemsControl.ItemTemplate>
            </map:MapItemsControl>
            <map:Pushpin Location="36.6797276003243,118.495410536117" Style="{StaticResource alarmStyle}"/>
            <Canvas Width="50" Height="80"
              map:MapLayer.Position="31.9121578992881,107.233555852083"
              map:MapLayer.PositionOrigin="BottomCenter" Opacity="0.7">

                <Path Data="M 0,0 L 50,0 50,50 25,80 0,50 0,0" Fill="ForestGreen" Stroke="Wheat" StrokeThickness="2" />
                <TextBlock FontSize="10" Foreground="White" Padding="10" TextAlignment="Center">
                        这里是 <LineBreak />
                        四川 <LineBreak />
                        通江县 <LineBreak />
                </TextBlock>
            </Canvas>
            <map:MapLayer x:Name="CarLayer"/>
        </map:Map>

        <DockPanel>
            <Grid DockPanel.Dock="Top">
                <Path Data="M75.811064,0 L275.81107,0 275.81107,39.999999 267.12714,39.999999 267.12798,40.000499 67.127973,40.000499 0,0.00050140842 75.811064,0.00050140842 z"
              Width="200" Height="30" Stretch="Fill" Opacity=".8" Stroke="#FFCCFEFF" StrokeThickness="1.5" Fill="{StaticResource MainColor}">

                    <Path.RenderTransform>
                        <SkewTransform AngleX="-40"/>
                    </Path.RenderTransform>
                </Path>
                <TextBlock Text="预警指挥平台" Foreground="White"
                           VerticalAlignment="Center" HorizontalAlignment="Center"
                           FontSize="16" FontWeight="Black"/>

            </Grid>
            <Grid DockPanel.Dock="Left" Width="200"
                  HorizontalAlignment="Left" >

                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto"/>
                    <RowDefinition/>
                    <RowDefinition Height="Auto"/>
                </Grid.RowDefinitions>
                <Rectangle Grid.RowSpan="3" Fill="#FF364BD8" Opacity=".8" Stroke="#FFCCFEFF" StrokeThickness="1.5"/>
                <TextBlock Text="数据信息" FontSize="16" Foreground="White" Margin="10,10,0,0"/>
                <ItemsControl ItemsSource="{Binding PushpinArray,RelativeSource={RelativeSource AncestorType=local:BingAMapExample}}"
                              Margin="4,10" Grid.Row="1">

                    <ItemsControl.ItemTemplate>
                        <DataTemplate>
                            <Grid Margin="4" x:Name="PART_Grid"
                                  MouseLeftButtonDown="PART_Grid_MouseLeftButtonDown"
                                  Tag="{Binding ID}">

                                <Grid.Resources>
                                    <Style TargetType="TextBlock">
                                        <Setter Property="Foreground" Value="White"/>
                                        <Setter Property="FontSize" Value="16"/>

</Style>
                                </Grid.Resources>
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition Width="Auto"/>
                                    <ColumnDefinition/>
                                </Grid.ColumnDefinitions>
                                <Ellipse Width="20" Height="20" Fill="OrangeRed"/>
                                <TextBlock Text="{Binding ID}" HorizontalAlignment="Center"/>
                                <TextBlock Margin="4,0" Grid.Column="1" Text="{Binding Title}"/>
                            </Grid>
                            <DataTemplate.Triggers>
                                <Trigger Property="IsMouseOver" Value="True">
                                    <Setter Property="Background" TargetName="PART_Grid" Value="#FF020621"/>
                                </Trigger>
                            </DataTemplate.Triggers>
                        </DataTemplate>
                    </ItemsControl.ItemTemplate>
                </ItemsControl>
                <Button Content="物资轨迹" Click="BtnCar_Click" Grid.Row="2" Height="40" Style="{StaticResource PrimaryButton}"/>
            </Grid>
        </DockPanel>
    </Grid>
</UserControl>

4)新建 BingAMapExample.xaml.cs 逻辑代码如下:

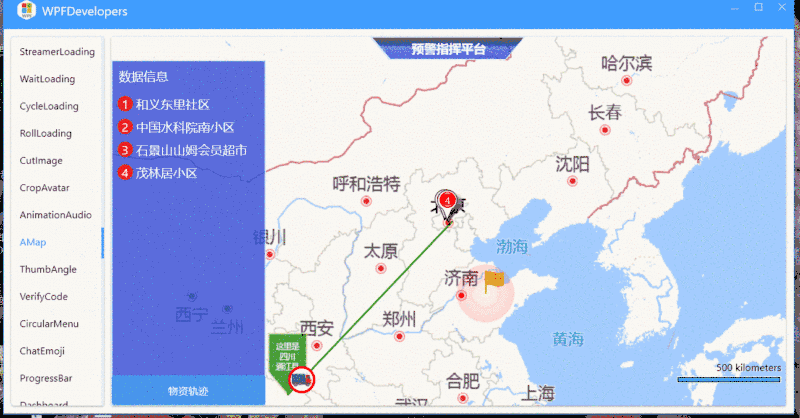

  • 点击左侧列表的point点地图定位到并放大层级到16级。
using Microsoft.Maps.MapControl.WPF;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Linq;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Threading;

namespace WPFDevelopers.Samples.ExampleViews
{
    /// <summary>
    /// BingAMapExample.xaml 的交互逻辑
    /// </summary>
    public partial class BingAMapExample : UserControl
    {
        private LocationCollection _polyLocations;
        private MapPolyline mapPolyline;
        private Pushpin carPushpin;
        private DispatcherTimer dispatcherTimer;
        private List<Location> locations;

        public IEnumerable PushpinArray
        {
            get { return (IEnumerable)GetValue(PushpinArrayProperty); }
            set { SetValue(PushpinArrayProperty, value); }
        }

        public static readonly DependencyProperty PushpinArrayProperty =
            DependencyProperty.Register("PushpinArray"typeof(IEnumerable), typeof(BingAMapExample), new PropertyMetadata(null));

        public BingAMapExample()
        {
            InitializeComponent();
            var pushpins = new List<PushpinModel>();
            pushpins.Add(new PushpinModel { ID = 1, Location = new Location(39.8151940395589116.411970893135), Title = "和义东里社区" });
            pushpins.Add(new PushpinModel { ID = 2, Location = new Location(39.9094878843105116.33299936282), Title = "中国水科院南小区" });
            pushpins.Add(new PushpinModel { ID = 3, Location = new Location(39.9219204792284116.203500574855), Title = "石景山山姆会员超市" });
            pushpins.Add(new PushpinModel { ID = 4, Location = new Location(39.9081417418219116.331244439925), Title = "茂林居小区" });
            PushpinArray = pushpins;

            _polyLocations = new LocationCollection();

            _polyLocations.Add(new Location(39.9082973053021116.63105019548));
            _polyLocations.Add(new Location(31.9121578992881107.233555852083));

            mapPolyline = new MapPolyline
            {
                Stroke = Brushes.Green,
                StrokeThickness = 2,
                Locations = _polyLocations,
            };
            CarLayer.Children.Add(mapPolyline);

            carPushpin = new Pushpin
            {
                Template = this.Resources["CarTemplate"as ControlTemplate,
                Location = new Location(31.9121578992881107.233555852083),
                PositionOrigin = PositionOrigin.Center,
            };

            CarLayer.Children.Add(carPushpin);

            dispatcherTimer = new DispatcherTimer();
            dispatcherTimer.Interval = TimeSpan.FromSeconds(1.5);
            dispatcherTimer.Tick += DispatcherTimer_Tick;
        }
        int index = 0;
        private void DispatcherTimer_Tick(object sender, EventArgs e)
        {
            if (index < 0)
            {
                index = locations.Count - 1;
                dispatcherTimer.Stop();
                return;
            }
            carPushpin.Location = locations[index];
            index--;
        }

        private void BtnCar_Click(object sender, RoutedEventArgs e)
        {
            locations = new List<Location>();
            locations.Add(new Location(39.9082973053021116.63105019548));
            locations.Add(new Location(39.0654365763652115.513103745601));
            locations.Add(new Location(38.5861378332358114.897869370601));
            locations.Add(new Location(38.0690298850334114.238689683101));
            locations.Add(new Location(37.4436424646135113.491619370601));
            locations.Add(new Location(36.8833163124675112.832439683101));
            locations.Add(new Location(36.6015984304246112.480877183101));
            locations.Add(new Location(36.2125510101126112.041424058101));
            locations.Add(new Location(35.6074752751952111.426189683101));
            locations.Add(new Location(34.9977887035825110.591228745601));
            locations.Add(new Location(34.456028305434109.932049058101));
            locations.Add(new Location(33.9836399832877109.580486558101));
            locations.Add(new Location(33.5086116028286108.965252183101));
            locations.Add(new Location(33.1046158275268108.525799058101));
            locations.Add(new Location(32.6617655474571108.042400620601));
            locations.Add(new Location(32.179523137361107.515056870601));
            locations.Add(new Location(31.9121578992881107.233555852083));
            index = locations.Count - 1;
            dispatcherTimer.Start();

        }
        private void Map_MouseDown(object sender, MouseButtonEventArgs e)
        {
            Point mousePosition = e.GetPosition(this);
            Location pinLocation = this.map.ViewportPointToLocation(mousePosition);

        }

        private void Pushpin_MouseDown(object sender, MouseButtonEventArgs e)
        {
            var model = sender as Pushpin;
            map.Center = model.Location;
            map.ZoomLevel = 16;
        }

        private void PART_Grid_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            var grid = sender as Grid;
            var model = PushpinArray.OfType<PushpinModel>().FirstOrDefault(x => x.ID.Equals(grid.Tag));
            map.Center = model.Location;
            map.ZoomLevel = 16;
        }
    }
}

Github|BingAMapExample
