# 🤔 forplo | 冲冲冲！这个画森林图的包好flexible哦~

## 2用到的包

``rm(list = ls())library(tidyverse)library(forplo)library(meta)library(autoReg)library(survival)``

## 3meta分析结果可视化

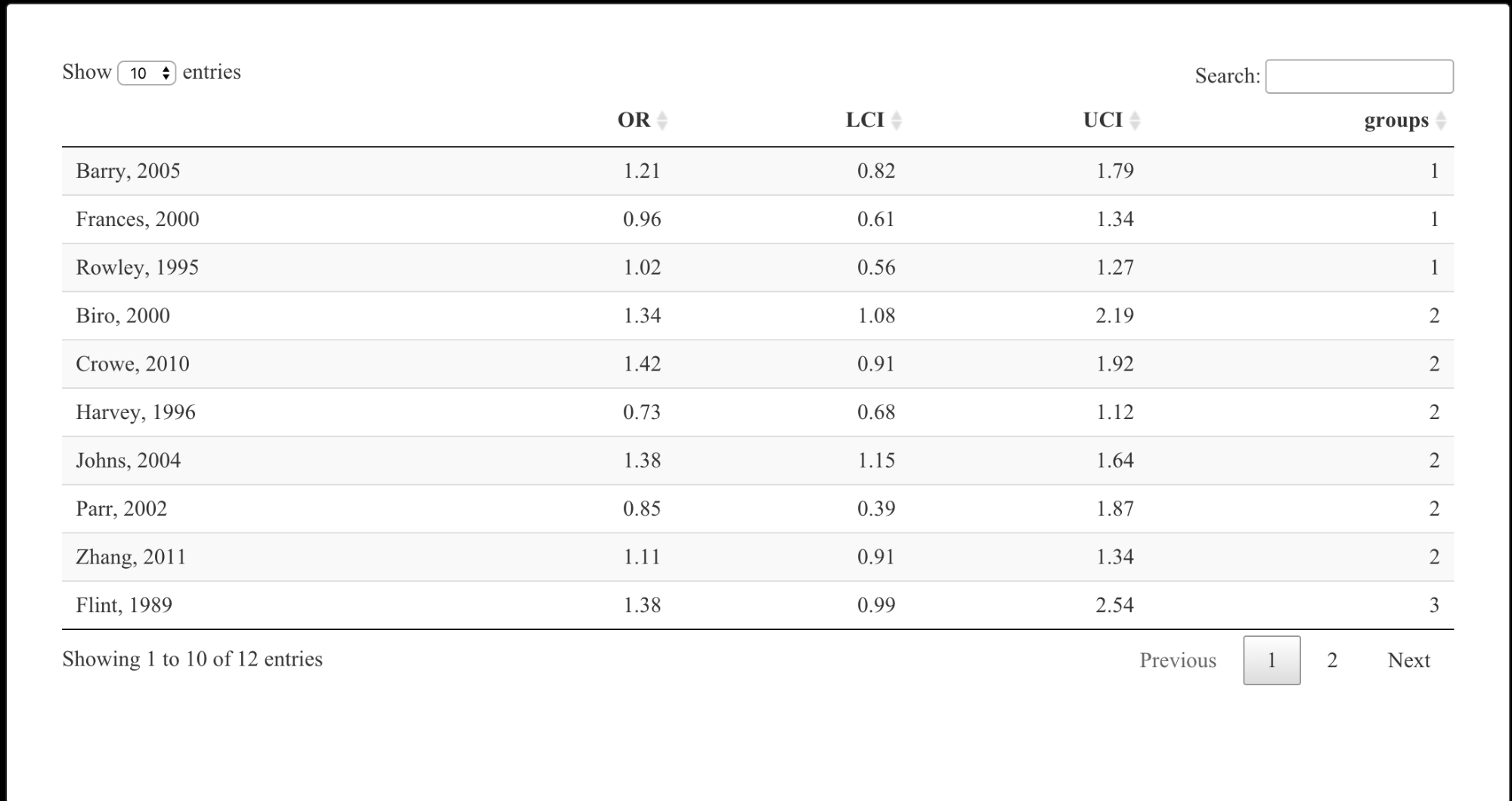

### 3.1 示例数据

``dat <- read.csv("./forplo_meta.csv",row.names = 1)DT::datatable(dat)``

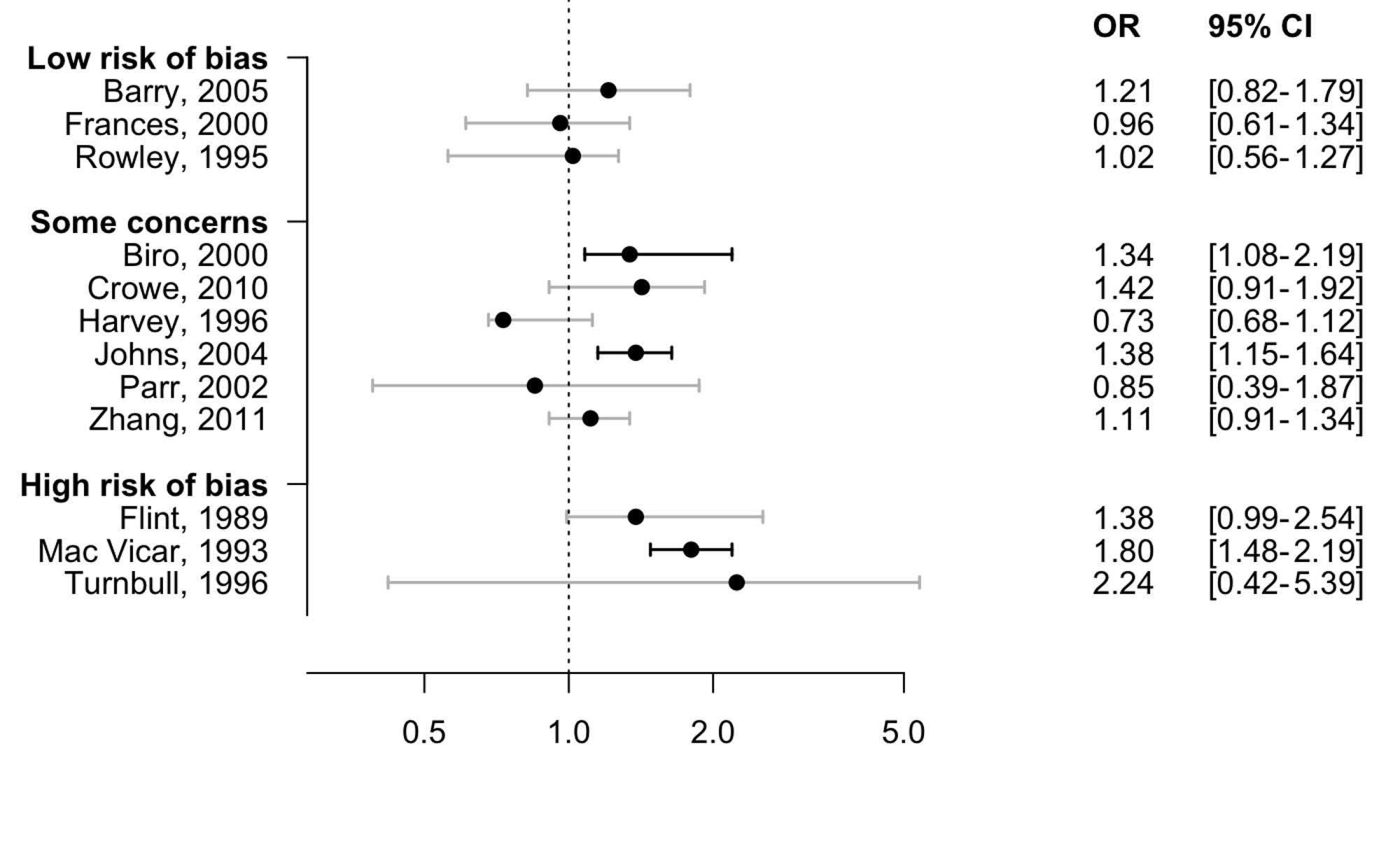

### 3.2 初步绘图

``forplo(dat[,1:3],       groups=dat\$groups,       font = "Arial",       grouplabs=c('Low risk of bias',                   'Some concerns',                   'High risk of bias'))``

### 3.3 分组计算meta效应值

``logORs <- round(log(dat\$OR),2)SE <- round((log(dat\$UCI)-logORs)/1.96,2)meta1 <- meta::metagen(logORs[1:3],SE[1:3])meta2 <- meta::metagen(logORs[4:9],SE[4:9])meta3 <- meta::metagen(logORs[10:12],SE[10:12])metatot <- meta::metagen(logORs,SE)``

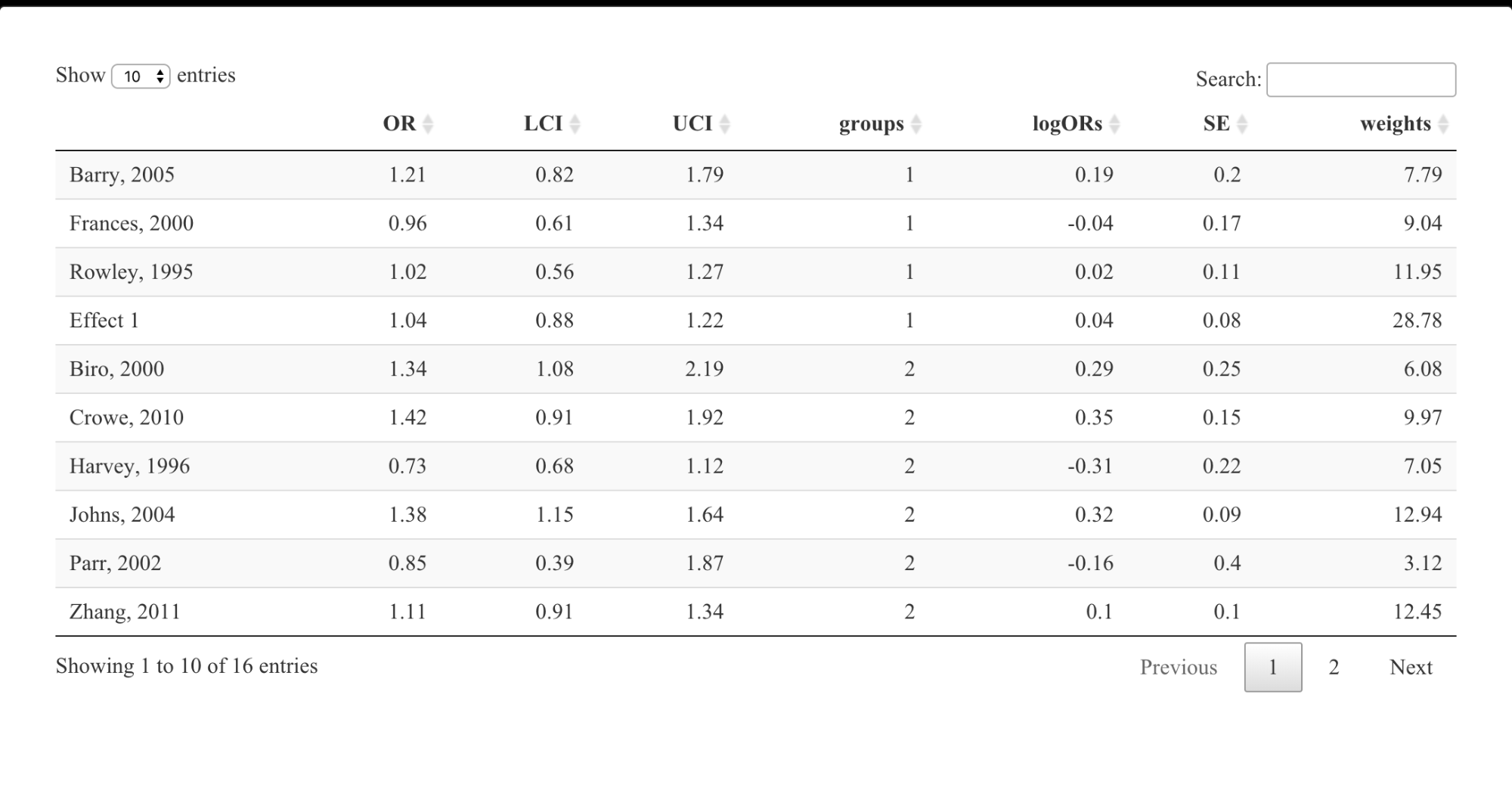

### 3.4 创建可视化需要的data

``dat2 <- datdat2\$logORs <- logORsdat2\$SE <- SEdat2\$weights <- round(metatot\$w.random/sum(metatot\$w.random)*100,2)dat2 <- rbind(subset(dat2,groups==1),      c(round(exp(meta1\$TE.random),2),        round(exp(meta1\$lower.random),2),        round(exp(meta1\$upper.random),2),        1,round(meta1\$TE.random,2),round(meta1\$seTE.random,2),sum(dat2\$weights[1:3])),      subset(dat2,groups==2),      c(round(exp(meta2\$TE.random),2),        round(exp(meta2\$lower.random),2),        round(exp(meta2\$upper.random),2),        2,round(meta2\$TE.random,2),round(meta2\$seTE.random,2),sum(dat2\$weights[4:9])),      subset(dat2,groups==3),      c(round(exp(meta3\$TE.random),2),        round(exp(meta3\$lower.random),2),        round(exp(meta3\$upper.random),2),        3,round(meta3\$TE.random,2),round(meta3\$seTE.random,2),sum(dat2\$weights[10:12])),      c(round(exp(metatot\$TE.random),2),        round(exp(metatot\$lower.random),2),        round(exp(metatot\$upper.random),2),        4,round(metatot\$TE.random,2),round(metatot\$seTE.random,2),100))dat2 <- data.frame(dat2)rownames(dat2)[c(4,11,15,16)] <- c('Effect 1','Effect 2','Effect 3','Effect 4')DT::datatable(dat2)``

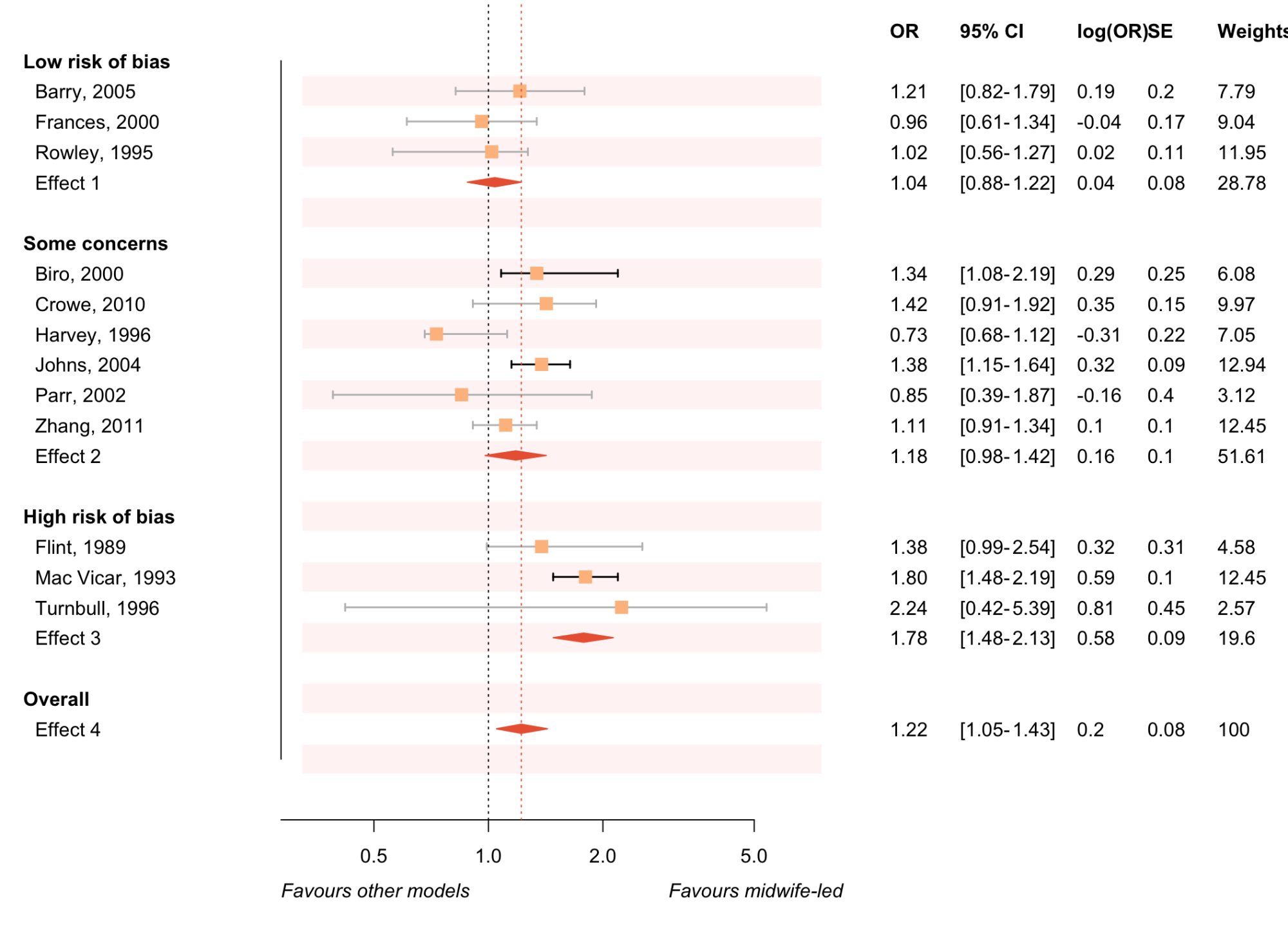

### 3.5 森林图可视化meta结果

``forplo(dat2[,1:3],       font = "Arial",       groups=dat2\$groups,       grouplabs=c('Low risk of bias',                   'Some concerns',                   'High risk of bias',                   'Overall'),       left.align=TRUE,       add.columns=dat2[,5:7],       add.colnames=c('log(OR)','SE','Weights'),       scaledot.by = dat2\$weights,       col= '#FEBE8C',       ci.edge= T,       char = 15,  # 10为空心圆, 15为实心方格, 20实心圆       diamond=c(4,11,15,16),       diamond.col= '#EB6440',       favorlabs=c('Favours other models','Favours midwife-led'), # x.lab       ## 阴影参数       shade.every=1, # 每行加背景底色       )``

## 4Cox回归结果可视化

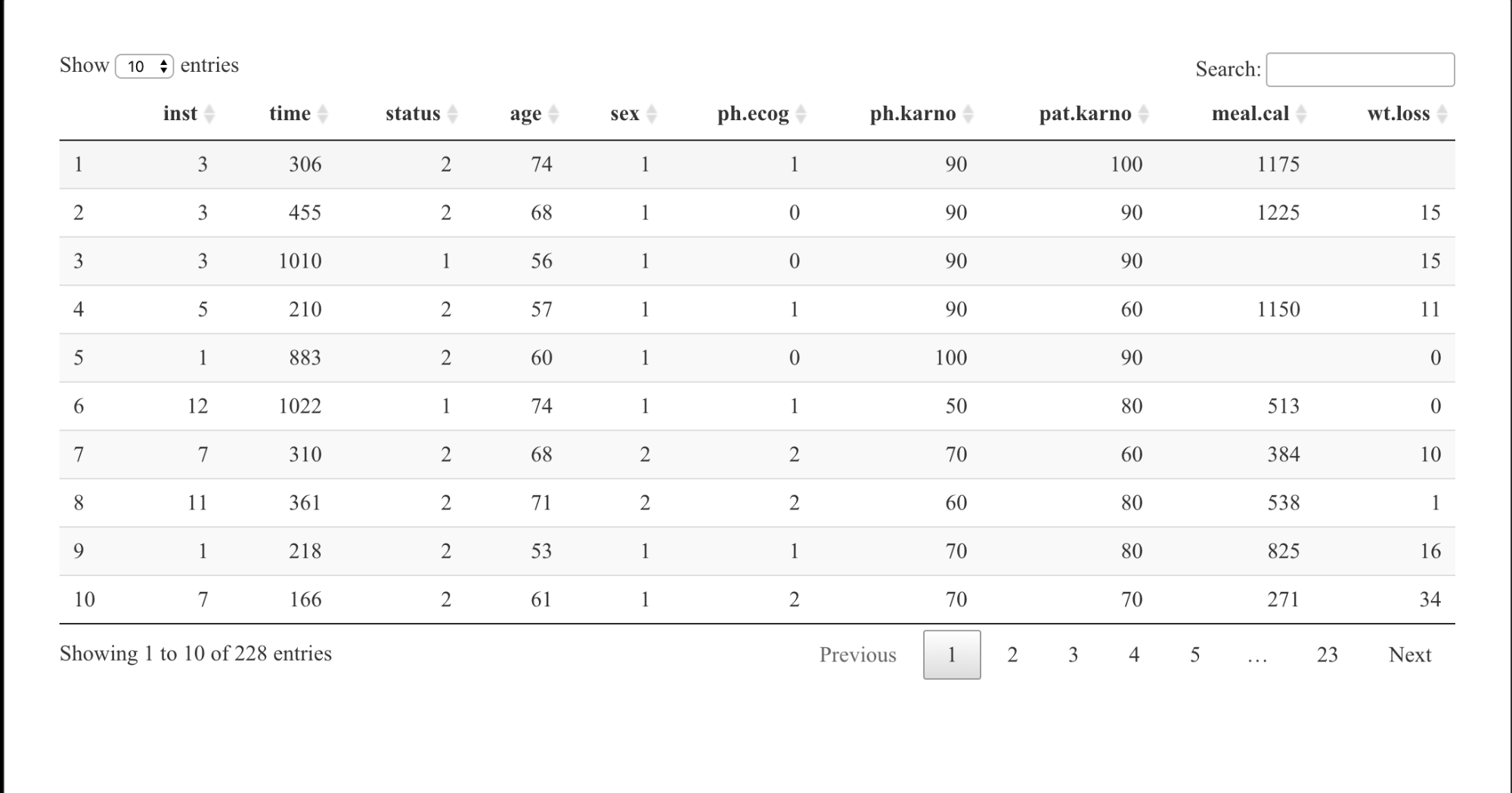

``data("cancer")DT::datatable(lung)``

### 4.1 因子转换

``lung\$sex <- factor(lung\$sex, levels = unique(lung\$sex))lung\$ph.ecog <- factor(lung\$ph.ecog, levels = c(0,1,2,3))``

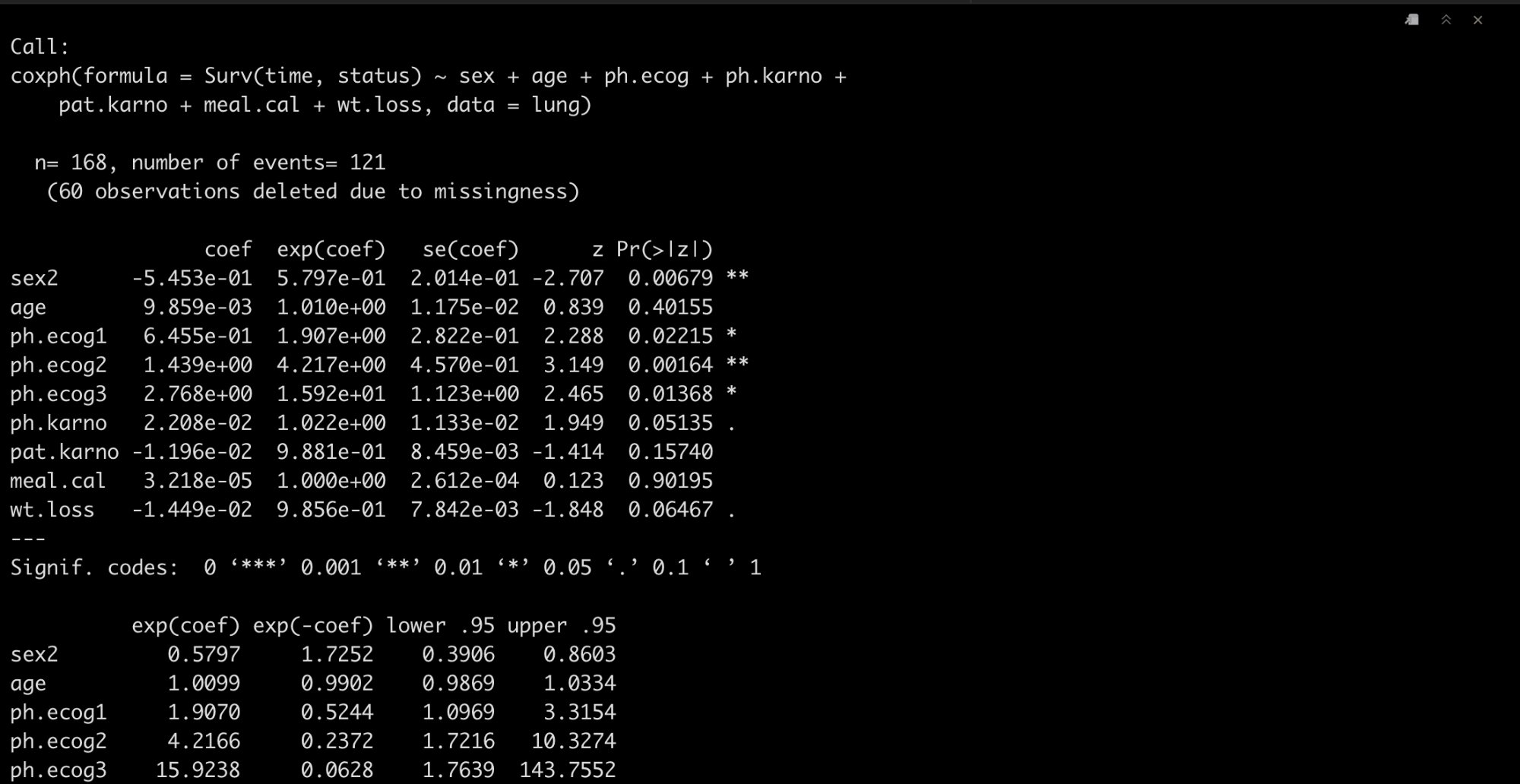

### 4.2 Cox回归建模

``fit1 <- coxph(Surv(time, status) ~ sex + age + ph.ecog + ph.karno + pat.karno + meal.cal + wt.loss,           data = lung)summary(fit1)``

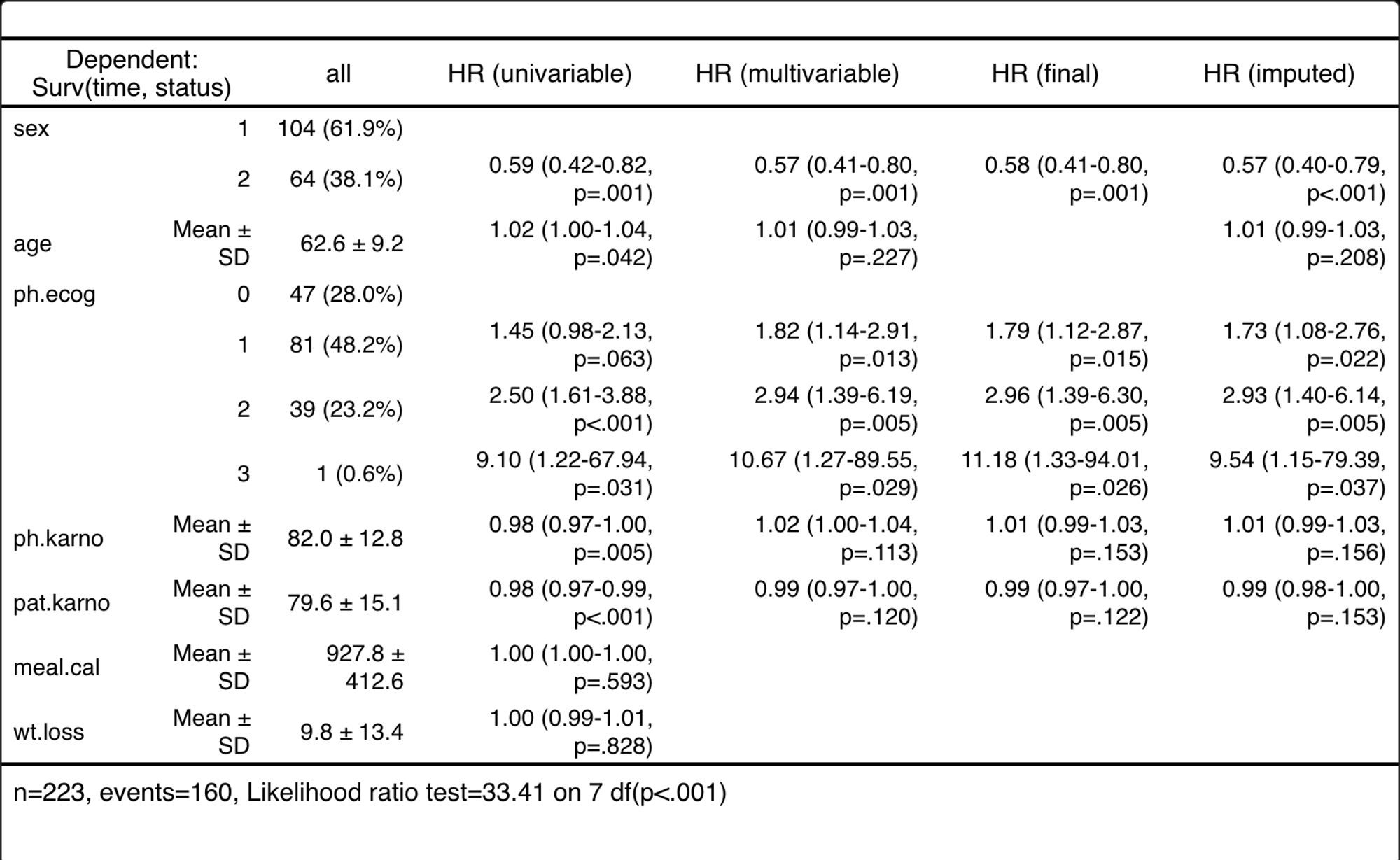

### 4.3 整理成table

Note! 由于这个`dataset`存在缺失值，所以使用了`mice`包进行填补，想要了解`mice`具体教程的小伙伴可以在公众号内搜索`ggmice`或者`mice`。 😏

``autoReg(fit1, uni = T, threshold = 0.1,         final = T,imputed = T) %>%  myft()``

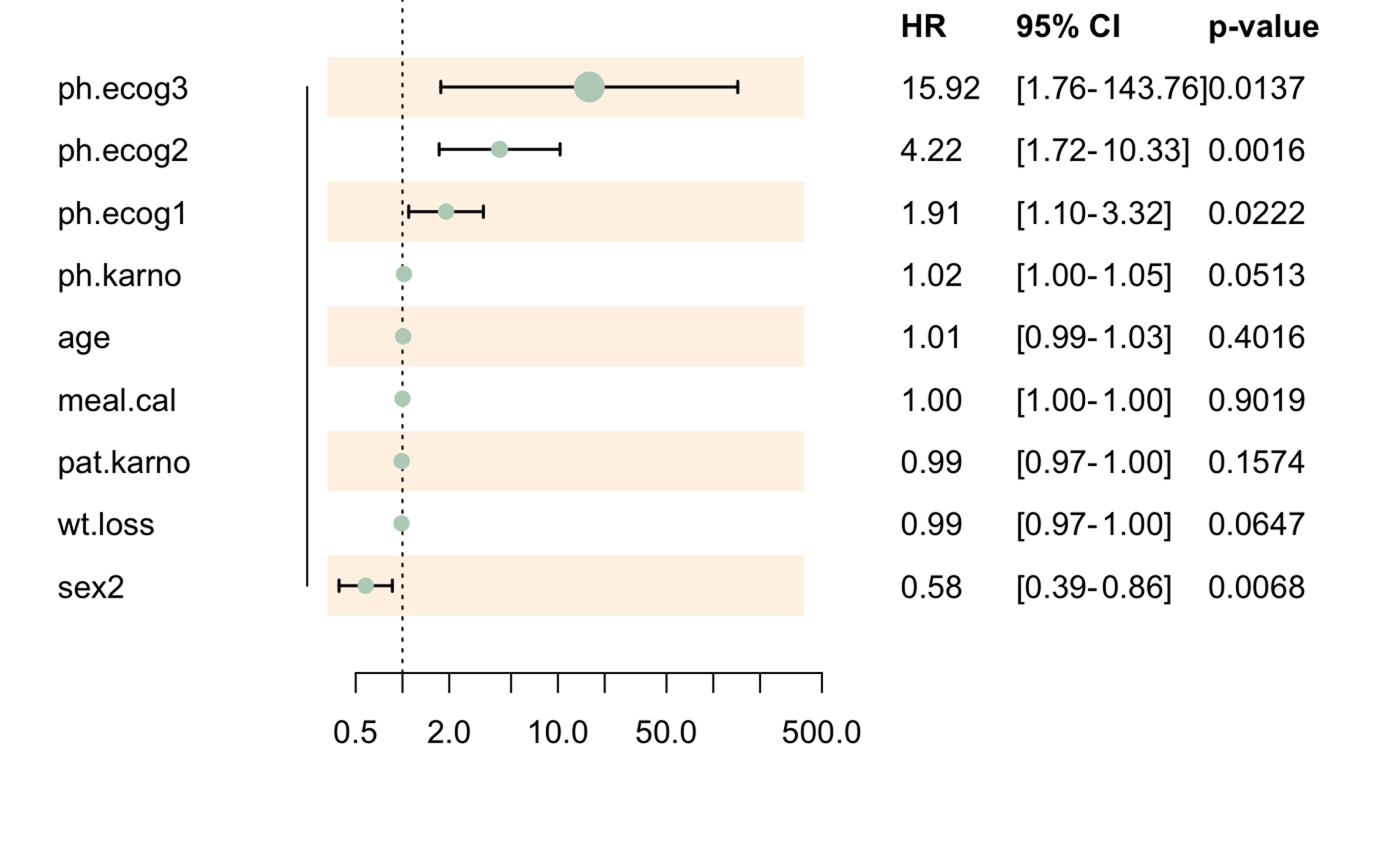

### 4.4 森林图可视化

``forplo(fit1,       font='Arial',       sort = T,       #flipbelow1=T,       left.align=T,       ci.edge= T,       scaledot.by=abs(coef(fit1)),       col = '#BAD1C2',       char = 20,       shade.every = 1,       shade.col = '#FDF0E0',       shade.alpha = 0.8       )``

## 5logistic回归结果可视化

### 5.1 logistic回归建模

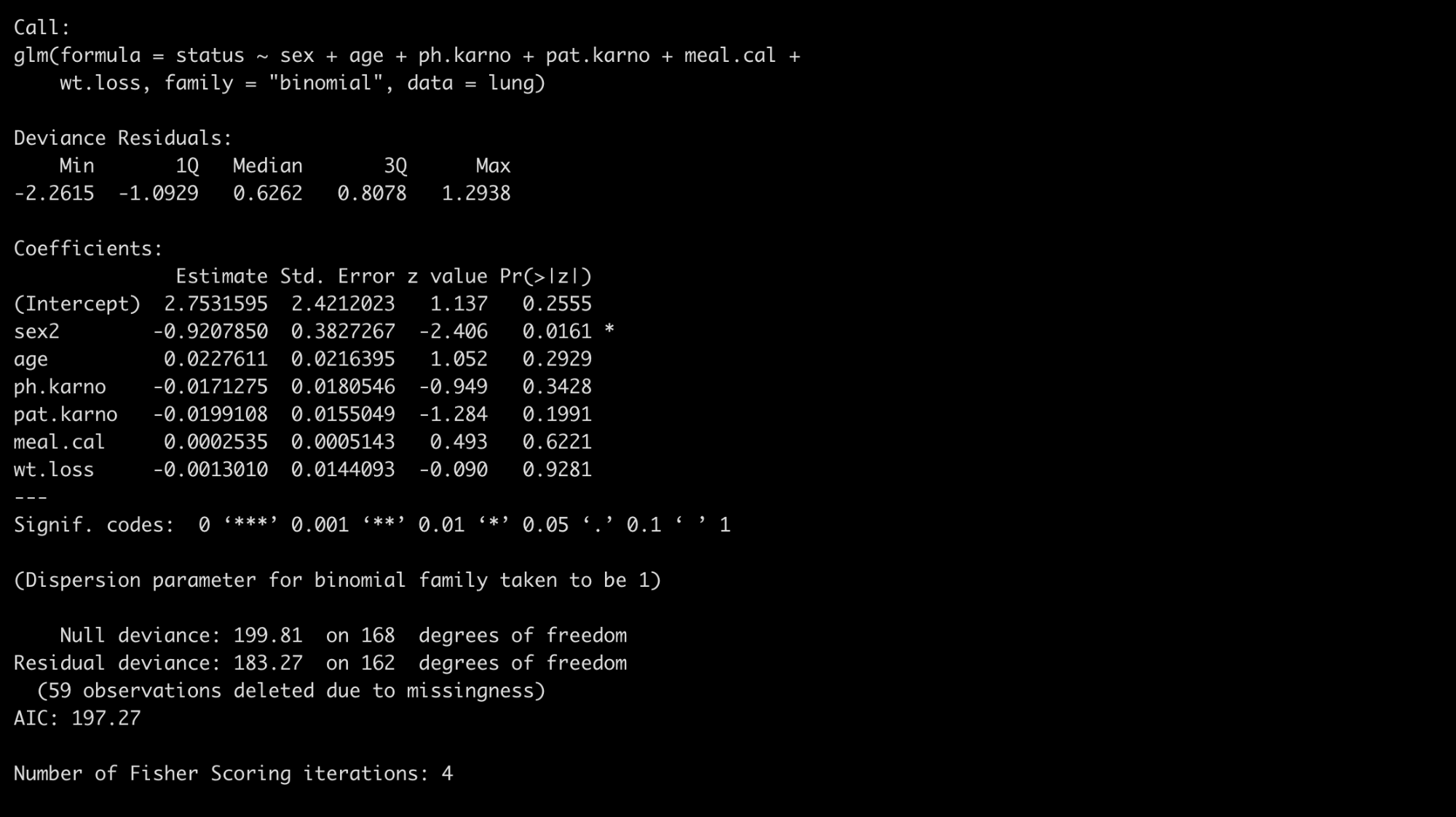

``lung\$status <- factor(lung\$status, levels = rev(unique(lung\$status)))  fit2 <- glm(status ~ sex + age + ph.karno + pat.karno + meal.cal + wt.loss,           data = lung,           family="binomial")summary(fit2)``

### 5.2 整理成table

``autoReg(fit2, uni = T, threshold = 0.1,         final = T,imputed = T) %>%   myft()``

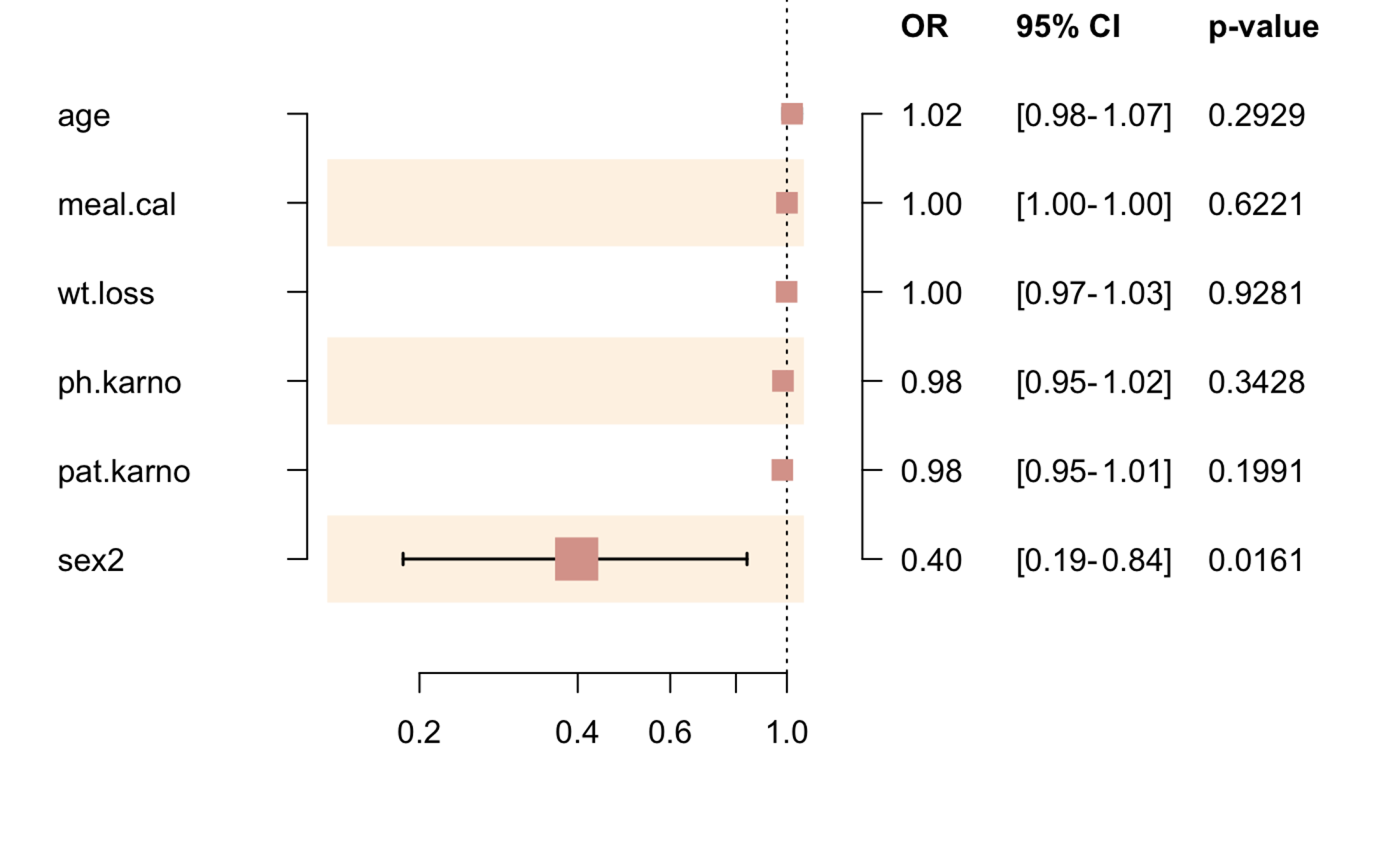

### 5.3 森林图可视化

``forplo(fit2,       font='Arial',       sort = T,       #flipbelow1=T,       left.align=T,       ci.edge= T,       scaledot.by=abs(coef(fit2)),       col = '#DBA39A',       char = 15,       shade.every = 1,       shade.col = '#FDF0E0',       shade.alpha = 0.8,       right.bar=T,       rightbar.ticks=T,       leftbar.ticks=T       )``
