DLT-03-多元线性回归

本文是深度学习入门(deep learning tutorial, DLT)系列的第三篇文章,主要介绍一下多元线性回归。想要学习深度学习或者想要了解机器学习的同学可以关注公众号GeodataAnalysis,我会逐步更新这一系列的文章。

多元线性回归和一元线性回归的模型表达基本一致,区别只在于输入的变量个数更多。因此,二者在假设函数和梯度下降方面有些区别,本文会在上一篇一元线性回归的基础上对其进行详细介绍。为了准确的衡量模型的精度,本文介绍了最小二乘法,使用该方法计算出的假设函数能最小化使损失函数的值。此外,多个变量的量纲不一定一致,因此本文还会介绍一下无量纲化在机器学习中的作用。

1 测试数据集

关注公众号GeodataAnalysis,回复20230302下载测试数据。测试数据为波士顿房价数据集,数据集的因变量为房价;共有十三个自变量,表示影响房价的十三个因素。

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('./housing.data', delim_whitespace=' ')
df.head()
CRIM ZN INDUS CHAS NOX RM AGE DIS RAD TAX PTRATIO B LSTAT MEDV
0 0.00632 18.0 2.31 0.0 0.538 6.575 65.2 4.0900 1.0 296.0 15.3 396.90 4.98 24.0
1 0.02731 0.0 7.07 0.0 0.469 6.421 78.9 4.9671 2.0 242.0 17.8 396.90 9.14 21.6
2 0.02729 0.0 7.07 0.0 0.469 7.185 61.1 4.9671 2.0 242.0 17.8 392.83 4.03 34.7
3 0.03237 0.0 2.18 0.0 0.458 6.998 45.8 6.0622 3.0 222.0 18.7 394.63 2.94 33.4
4 0.06905 0.0 2.18 0.0 0.458 7.147 54.2 6.0622 3.0 222.0 18.7 396.90 5.33 36.2
x = df[df.columns[:-1]].to_numpy().T
y = df[df.columns[-1]].to_numpy()
x.shape, y.shape
((13, 506), (506,))

2 假设函数

多元线性回归的输入变量是多维变量,其表示方法为:

容纳这些多个特征的假设函数的多变量形式如下:

使用矩阵乘法的定义,我们的多变量假设函数可以简洁地表示为如下形式,其中 为全是1的矩阵,用于表示偏置项:

代码表示如下:

def hypothesis_fun(x, parameters):
    return parameters @ x

3 损失函数

多元线性回归的损失函数与一元线性回归一致,也是平⽅误差函数,即:

代码表示如下:

def loss_fun(x, y, parameters):
    y_predict = hypothesis_fun(x, parameters)
    return np.sum(np.square(y_predict-y))/(2*y.size)

4 梯度下降

多元线性回归的梯度下降算法和一元线性回归基本一致,区别只在于参数的数量多了一些,具体如下:

代码表示如下:

def gradient_decent(x, y, parameters, learning_rate):
    y_predict = hypothesis_fun(x, parameters)
    return parameters - learning_rate*(y_predict-y) @ x.T/y.size

5 最小二乘法

最小二乘法就是要找到一组 使得 (残差平方和) 最小,即,求

最小二乘法的代数法解法就是对 求偏导数,令偏导数为0,再解方程组,得到 。矩阵法比代数法要简洁,下面主要讲解下矩阵法解法。

假设函数 的矩阵并表达形式为:

其中, 维的矩阵, 代表样本的特征数, 代表样本的个数。假设函数 的向量, 的向量,里面有 个代数法的模型参数。

损失函数定义为 ,其中 是样本的输出向量,维度为 在这主要是为了求导后系数为1,方便计算。

根据最小二乘法的原理,我们要对这个损失函数的 向量求导取0。结果如下式:

对上述求导等式整理后可得:

如果 不可逆,通常有以下两种原因:

  • 冗余特征,其中两个特征非常密切相关(即它们是线性依赖的)
  • 特征太多(例如m≤n)。 在这种情况下,应删除某些特征或使用“正则化”。

使用最小二乘法计算假设函数的参数的代码如下:

x2 = np.vstack((np.ones(x.shape[1]), x))
parameters = np.linalg.inv(x2 @ x2.T) @ x2 @ y

6 无量纲化

本文介绍的无量纲化方法有两种,一是特征缩放,其计算公式为:

二是均值标准化,其计算公式为:

这两个无量纲化算法的代码表示如下:

def feature_scale(x):
    x_min = np.min(x, axis=1)[..., np.newaxis]
    x_max = np.max(x, axis=1)[..., np.newaxis]
    return (x - x_min)/(x_max - x_min)

def mean_normalization(x):
    x_min = np.min(x, axis=1)[..., np.newaxis]
    x_max = np.max(x, axis=1)[..., np.newaxis]
    x_mean = np.mean(x, axis=1)[..., np.newaxis]
    return (x - x_mean)/(x_max - x_min)

7 模型训练及预测

多元线性回归的训练步骤和一元线性回归基本一致,唯一的区别在于在正式训练之前对输入变量进行了无量纲化。此外,在输入变量x矩阵的第一行前插入全是1的一行,用于表示偏置项。

parameters = np.random.rand(x.shape[0]+1)
learning_rate = 0.1
losses = []

x2 = feature_scale(x)
x2 = np.vstack((np.ones(x2.shape[1]), x2))

batch_size = 300
epoch_size = 100

for epoch in range(epoch_size):
    for i in range(y.size//batch_size+1):
        random_samples = np.random.choice(x2.shape[1], batch_size)
        parameters = gradient_decent(x2[:, random_samples],
                              y[random_samples],
                              parameters,
                              learning_rate)
        losses.append(loss_fun(x2[:, random_samples],
                               y[random_samples],
                               parameters))
plt.plot(losses);

现在我们的模型已经训练好了,下面我把模型预测的代码封装一下,具体如下:

def predict(x, parameters):
    x = feature_scale(x)
    x = np.vstack((np.ones(x.shape[1]), x))
    return parameters @ x

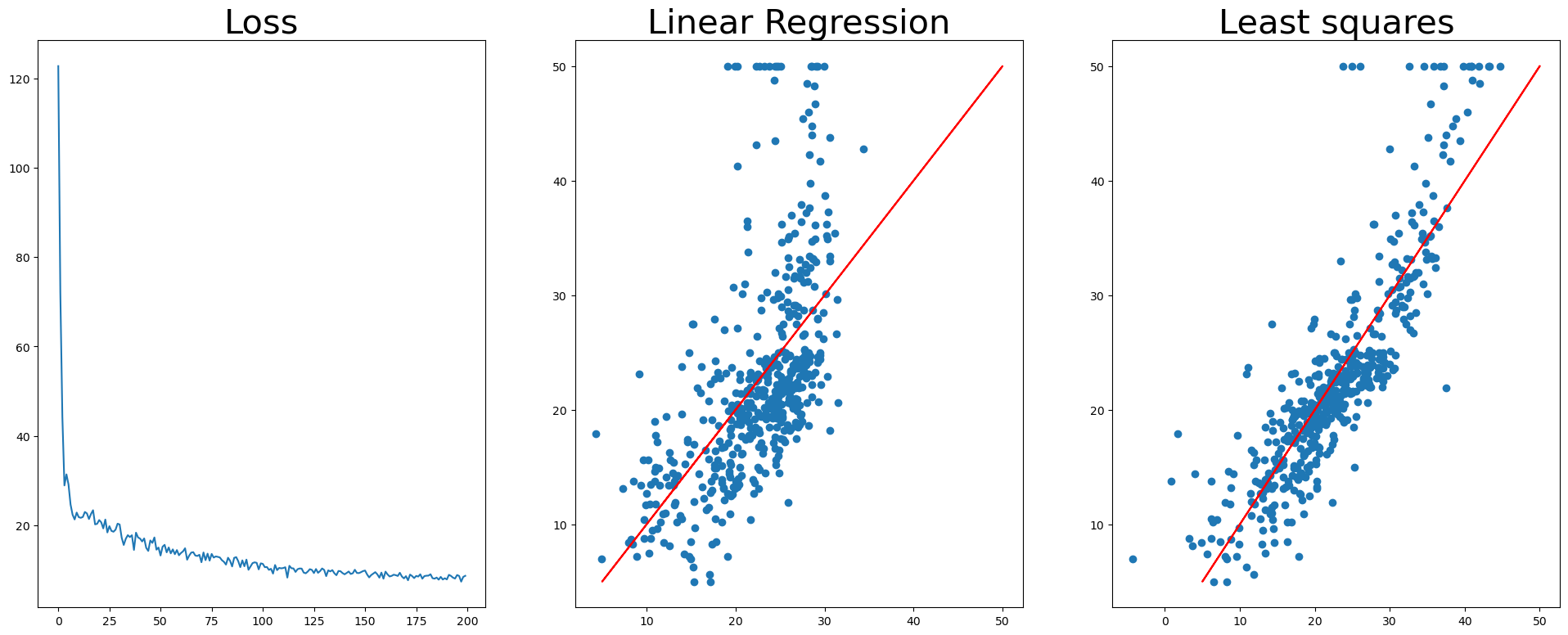

可视化预测结果的代码如下,这里我们对比了最小二乘法的结算结果和我们模型的结果,可以发现二者相差不大,具体如下:

fig, (ax1, ax2, ax3) = plt.subplots(13, figsize=(249))
ax1.plot(losses)
ax1.set_title('Loss', fontdict={'size'30})
ax2.scatter(predict(x, parameters), y)
ax2.plot(y, y, 'r-')
ax2.set_title('Linear Regression', fontdict={'size'30})

# Best theta
x2 = np.vstack((np.ones(x.shape[1]), x))
theta = np.linalg.inv(x2 @ x2.T) @ x2 @ y
ax3.scatter(theta @ x2, y);
ax3.plot(y, y, 'r-')
ax3.set_title('Least squares', fontdict={'size'30});

8 对模型进行封装

这一节我们将上文构建的模型封装成了Python的一个类,方便对其调用进行训练、预测等任务。目前这个类较为简单,可以将其视为一个建议的线性神经网络模型,理解这个类的构造对理解后文的代码十分有帮助,建议好好看一下。

class MutiLinearRe():

    def __init__(self, input_shape):
        self.input_shape = input_shape
        self.parameters = np.random.rand(self.input_shape[0]+1)

    def hypothesis_fun(self, x, parameters):
        return parameters @ x

    def loss_fun(self, x, y, parameters):
        y_predict = self.hypothesis_fun(x, parameters)
        return np.sum(np.square(y_predict-y))/(2*y.size)

    def gradient_decent(self, x, y, parameters, learning_rate):
        y_predict = self.hypothesis_fun(x, parameters)
        return parameters - learning_rate*(y_predict-y) @ x.T/y.size

    def feature_scale(self, x):
        x_min = np.min(x, axis=1)[..., np.newaxis]
        x_max = np.max(x, axis=1)[..., np.newaxis]
        return (x - x_min)/(x_max - x_min)

    def mean_normalization(self, x):
        x_min = np.min(x, axis=1)[..., np.newaxis]
        x_max = np.max(x, axis=1)[..., np.newaxis]
        x_mean = np.mean(x, axis=1)[..., np.newaxis]
        return (x - x_mean)/(x_max - x_min)

    def _normalization(self, x, normalization):
        if normalization:
            if 'feature' == normalization:
                x = self.feature_scale(x)
            elif 'mean' == normalization:
                x = self.mean_normalization(x)
        return x

    def fit(self, x, y, epoch_size, batch_size, learning_rate, normalization="feature"):
        self.learning_rate = learning_rate
        self.loss = []
        self.normalization = normalization
        self.x = self._normalization(x, self.normalization)
        self.x = np.vstack((np.ones(self.input_shape[1]), self.x))
        self.y = y.copy()

        for epoch in range(epoch_size):
            for i in range(y.size//batch_size+1):
                random_samples = np.random.choice(x2.shape[1], batch_size)
                self.parameters = self.gradient_decent(self.x[:, random_samples],
                self.y[random_samples],
                self.parameters,
                self.learning_rate)
                loss_ = self.loss_fun(self.x[:, random_samples],
                                      self.y[random_samples],
                                      self.parameters)
                if np.isinf(loss_):
                    raise ValueError("Overflow, please change the learning_rate")
                self.loss.append(loss_)

    def predict(self, x):
        x = self._normalization(x, self.normalization)
        x = np.vstack((np.ones(x.shape[1]), x))
        return self.parameters @ x
model = MutiLinearRe(input_shape=x.shape)
model.fit(x, y, epoch_size=100, batch_size=300
    learning_rate=0.1, normalization='feature')
fig, (ax1, ax2, ax3) = plt.subplots(13, figsize=(249))
ax1.plot(model.loss[700:])
ax1.set_title('Loss', fontdict={'size'30})
ax2.scatter(model.predict(x), y)
ax2.plot(y, y, 'r-')
ax2.set_title('Linear Regression', fontdict={'size'30})

# Least squares: Best theta
x2 = np.vstack((np.ones(x.shape[1]), x))
theta = np.linalg.inv(x2 @ x2.T) @ x2 @ y
ax3.scatter(theta @ x2, y);
ax3.plot(y, y, 'r-')
ax3.set_title('Least squares', fontdict={'size'30});
