ELK这么简单还不会就Out了

很久没有发文了,今天水一篇操作文章分享一下经验吧,后续陆续推出深度好文

springboot+logStash+elasticsearch+kibana

版本

  • elasticsearch 7.4.2
  • logStash 7.4.2
  • springboot 2.1.10

下载地址

选择下载的产品和版本,进行下载即可

https://www.elastic.co/cn/downloads/past-releases

部署

启动Elasticsearch

  • 设置配置文件elasticsearch

    cluster.name: my-application
    node.name: node-1
    path.data: /cxt/software/maces/7.4.2/elasticsearch-7.4.2/data
    path.logs: /cxt/software/maces/7.4.2/elasticsearch-7.4.2/logs
    network.host: 0.0.0.0
    http.port: 9200
    discovery.seed_hosts: ["127.0.0.1"]
    cluster.initial_master_nodes: ["node-1"]
  • 启动

    bin/elasticsearch

启动Kibana

  • 直接去bin目录下启动即可, 都是本机启动无需修改配置

    bin/kibana

启动LogStash

  • config文件夹下创建springboot-log.conf,该配置文件的作用是启动在本机9600端口,后面springboot应用可以直接往9600发送日志。input为日志输入,output为日志输出到elasticsearch

    input{
    # 启动在9600端口,输出在控制台
     tcp {
            mode => "server"
            host => "0.0.0.0"
            port => 9600
            codec => json_lines
     }
    }

    output{
     elasticsearch{
         hosts=>["192.168.123.166:9200"]
         index => "springboot-logstash-%{+YYYY.MM.dd}"
        }
    # stdout{
    #  codec => rubydebug
    # }
    }
  • 启动

    bin/logstash -f config/springboot-log.conf

启动SpringBoot应用

  • pom

    		<dependency>
    			<groupId>net.logstash.logback</groupId>
    			<artifactId>logstash-logback-encoder</artifactId>
    			<version>7.0</version>
    		</dependency>

  • testController 方法

    @RestController
    public class TestController {
        public static final Logger log = LoggerFactory.getLogger(TestController.class);
        @RequestMapping("/test")
        public String test(){
            log.info("this is a log from springboot");
            log.trace("this is a trace log ");
            return "success";
        }
    }


  • 启动类main方法加入自动生成日志代码

      @SpringBootApplication
    public class ElkApplication {
        public static final Logger log = LoggerFactory.getLogger(ElkApplication.class);
        Random random = new Random(10000);

        public static void main(String[] args) {
            SpringApplication.run(ElkApplication.class, args);
            new ElkApplication().initTask();

        }

        private void initTask() {
            Executors.newSingleThreadScheduledExecutor().scheduleAtFixedRate(new Runnable() {
                @Override
                public void run() {
                    log.info("seed info msg :" + random.nextInt(999999));
                }
            }, 100, 100, TimeUnit.MILLISECONDS);
        }

    }

  • resource新建logback-spring.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <configuration>
        <include resource="org/springframework/boot/logging/logback/base.xml" />
        <appender name="LOGSTASH" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
            <!--配置logStash 服务地址-->
            <destination>192.168.123.166:9600</destination>
            <!-- 日志输出编码 -->
            <encoder charset="UTF-8"
                     class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">

                <providers>
                    <timestamp>
                        <timeZone>UTC</timeZone>
                    </timestamp>
                    <pattern>
                        <pattern>
                            {
                            "logLevel": "%level",
                            "serviceName": "${springAppName:-}",
                            "pid": "${PID:-}",
                            "thread": "%thread",
                            "class": "%logger{40}",
                            "detail": "%message"
                            }
                        </pattern>
                    </pattern>
                </providers>
            </encoder>
        </appender>

        <root level="INFO">
            <appender-ref ref="LOGSTASH" />
            <appender-ref ref="CONSOLE" />
        </root>
    </configuration>


验证

  • 按顺序启动好了之后打开es-head插件即可查看索引信息,其中有一条调用接口的信息,还有应用启动的消息

    image-20220604110812146
    image-20220604110812146
  • Kibana数据展示

    • 设置索引规则

      image-20220604110933554
      image-20220604110933554

      输入之后设置时间戳匹配

    • 展示数据,选择Discover

      image-20220604111403630
      image-20220604111403630

加入filebeat

  • logstash 新建filebeat-logstash-log.conf

    input{
     beats {
            host => "192.168.123.166"
            port => 9600
     }
    }

    output{
     elasticsearch{
         hosts=>["192.168.123.166:9200"]
         index => "%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM.dd}"
        }
    }
  • 启动

    bin/logstash -f filebeat-logstash-log.conf

  • Filebeat 修改配置文件,找到下方修改的地方修改即可,主要监听的日志文件和输出的logstash服务器地址

    filebeat.inputs:

    - type: log
      enabled: true
      paths:
        - /cxt/codework/java/springboot-demo/logs/springboot-elk/2022-06-04/info.2022-06-04.0.log
    setup.kibana:
      Host: "192.168.123.166:5601"
    #----------------------------- Logstash output --------------------------------
    output.logstash:
      # The Logstash hosts
      hosts: ["192.168.123.166:9600"]
  • springboot 应用程序配置生成日志文件的位置,resource下新建logback-spring-file.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <configuration debug="false" scan="false">

        <!-- Log file path -->
        <property name="log.path" value="logs/springboot-elk"/>

        <!-- Console log output -->
        <appender name="console"
                  class="ch.qos.logback.core.ConsoleAppender">

            <encoder>
                <pattern>%d{MM-dd HH:mm:ss.SSS} %-5level [%logger{50}] - %msg%n
                </pattern>
            </encoder>
        </appender>

        <!-- Log file debug output -->
        <appender name="fileRolling_info" class="ch.qos.logback.core.rolling.RollingFileAppender">
            <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
                <fileNamePattern>${log.path}/%d{yyyy-MM-dd}/info.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
                <TimeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                    <maxFileSize>50MB</maxFileSize>
                </TimeBasedFileNamingAndTriggeringPolicy>
            </rollingPolicy>
            <encoder>
                <pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n
                </pattern>
            </encoder>
            <!--<filter class="ch.qos.logback.classic.filter.LevelFilter"> <level>ERROR</level>
                <onMatch>DENY</onMatch> <onMismatch>NEUTRAL</onMismatch> </filter> -->

        </appender>
        <!-- Log file error output -->
        <appender name="fileRolling_error" class="ch.qos.logback.core.rolling.RollingFileAppender">
            <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
                <fileNamePattern>${log.path}/%d{yyyy-MM-dd}/error.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
                <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                    <maxFileSize>50MB</maxFileSize>
                </timeBasedFileNamingAndTriggeringPolicy>
            </rollingPolicy>
            <encoder>
                <pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n
                </pattern>
            </encoder>
            <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
                <level>ERROR</level>
            </filter>
        </appender>

        <!-- Level: FATAL 0 ERROR 3 WARN 4 INFO 6 DEBUG 7 -->
        <root level="info">
            <!--{dev.start}-->
            <appender-ref ref="console"/>
            <!--{dev.end}-->
            <!--{alpha.start}
            <appender-ref ref="fileRolling_info" />
            {alpha.end}-->

            <!--        {release.start}-->
            <appender-ref ref="fileRolling_info"/>
            <!--        {release.end}-->
            <appender-ref ref="fileRolling_error"/>
        </root>
        <!-- Framework level setting -->
        <!--    <include resource="config/logger-core.xml" />-->

        <!-- Project level setting -->
        <!-- <logger name="your.package" level="DEBUG" /> -->
        <logger name="org.springframework" level="INFO"></logger>
        <logger name="org.mybatis" level="INFO"></logger>
    </configuration>

  • application.yml文件中指定logback-spring-file.xml

    logging:
      # 默认logback-spring.xml 使用logstash传输到es;
      # 改为logback-spring-file.xml传输日志到归档日志文件,使用filebeat监听日志
      config: classpath:logback-spring-file.xml

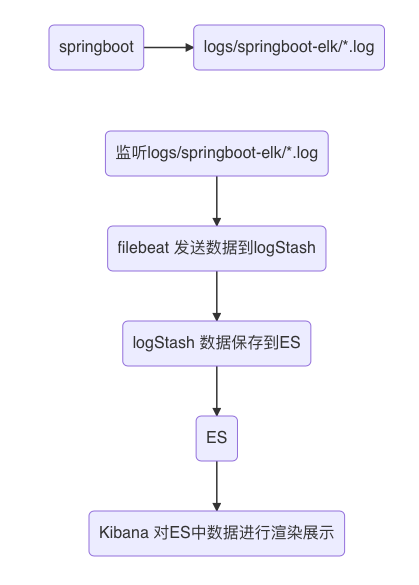

  • 到这流程就结束了,现在流程就是

好了,以上就是ELK的搭建流程,顺带使用filebeat监听日志文件的也做了,大体就是这个酱紫,好久没有肝文章了,后面会陆续推出更多深度理论好文,欢迎关注微信公众号:《醉鱼JAVA》一起进步学习
