1写在前面

最近的世界杯结果的确是让人大跌眼镜🕶️, 日本队🇯🇵先后击败世界杯冠军, 德国队🇩🇪和西班牙队🇪🇸, 韩国队🇰🇷逆转葡萄牙🇵🇹, 踩着乌拉圭🇺🇾进入淘汰赛(请韩国队🇰🇷自觉感谢裁判), 让无数人站上天台😂.
不过大家要是看看这几十年日本足球⚽️的发展也就不会觉得奇怪了, 就算有一天日本队将梦想照进现实,捧起大力神杯🏆, 我也不觉得有什么奇怪的.
还是祝各亚洲球队取得好成绩, 也祝梅西C罗在顶峰相遇, 人生不留遗憾😘.


接着是这一期的教程, 最近用了一下geomtextpath, 是个不错的ggplot2扩展包, 让你的geom_text卷起来吧.😂

主要函数有2个, geom_textpathgeom_labelpath, 我们逐一介绍吧.🧐

2用到的包

rm(list = ls())
# remotes::install_github("AllanCameron/geomtextpath", quiet = TRUE)
library(tidyverse)
library(geomtextpath)
library(ggsci)
library(RColorBrewer)

3等价函数

这里我们给大家补充一下在使用text或者label时, 用到的包内对等函数, 不同figure可以选用对应的text或者label.😉

ggplot geom Text equivalent Label equivalent
geom_path geom_textpath geom_labelpath
geom_segment geom_textsegment geom_labelsegment
geom_line geom_textline geom_labelline
geom_abline geom_textabline geom_labelabline
geom_hline geom_texthline geom_labelhline
geom_vline geom_textvline geom_labelvline
geom_curve geom_textcurve geom_labelcurve
geom_density geom_textdensity geom_labeldensity
geom_smooth geom_textsmooth geom_labelsmooth
geom_contour geom_textcontour geom_labelcontour
geom_density2d geom_textdensity2d geom_labeldensity2d
geom_sf geom_textsf geom_labelsf

4示例数据

示例数据我们就用大名鼎鼎的Orangeiris吧.

4.1 示例数据一

dat1 <- Orange

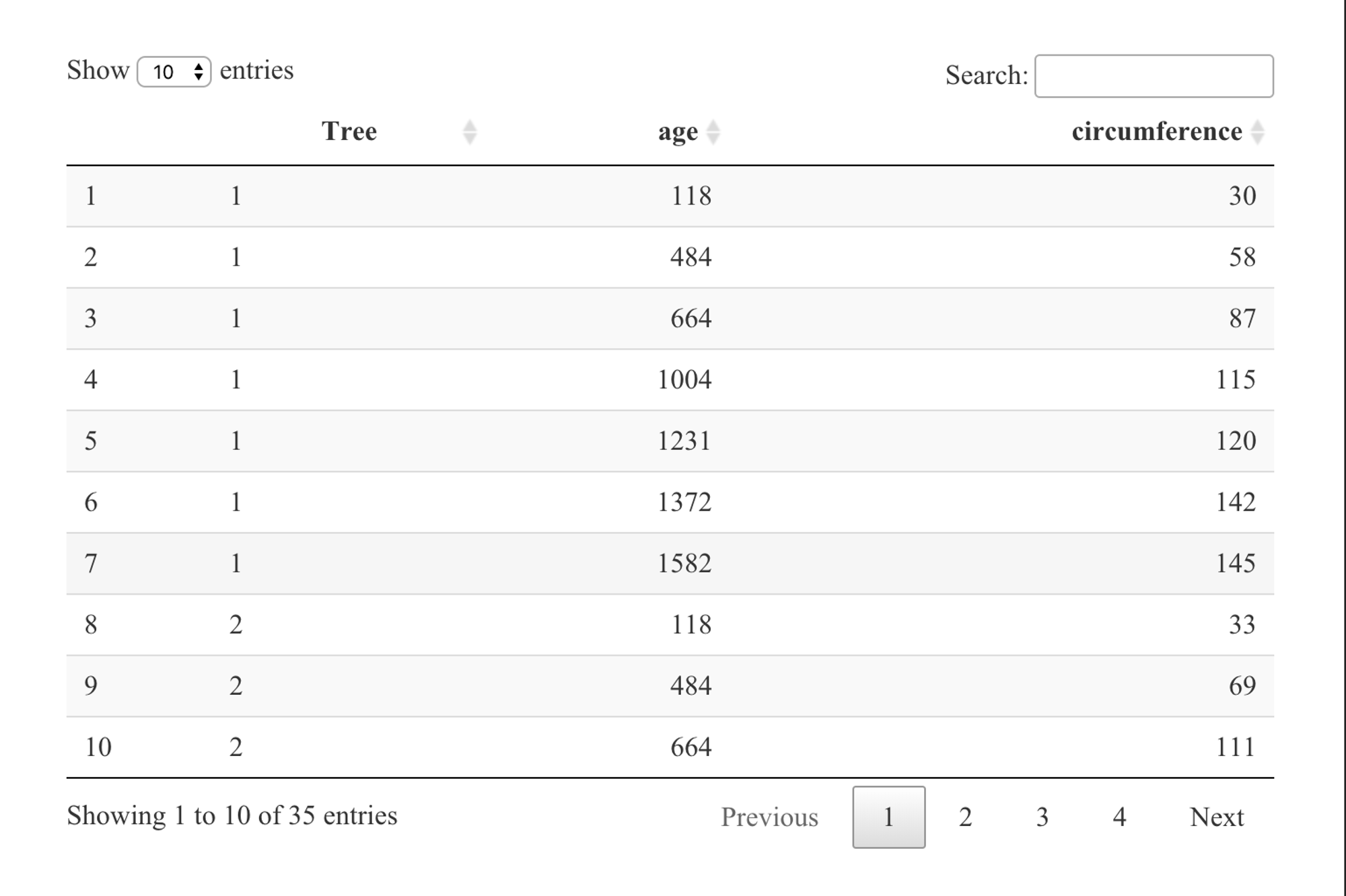

DT::datatable(dat1)

4.2 示例数据二

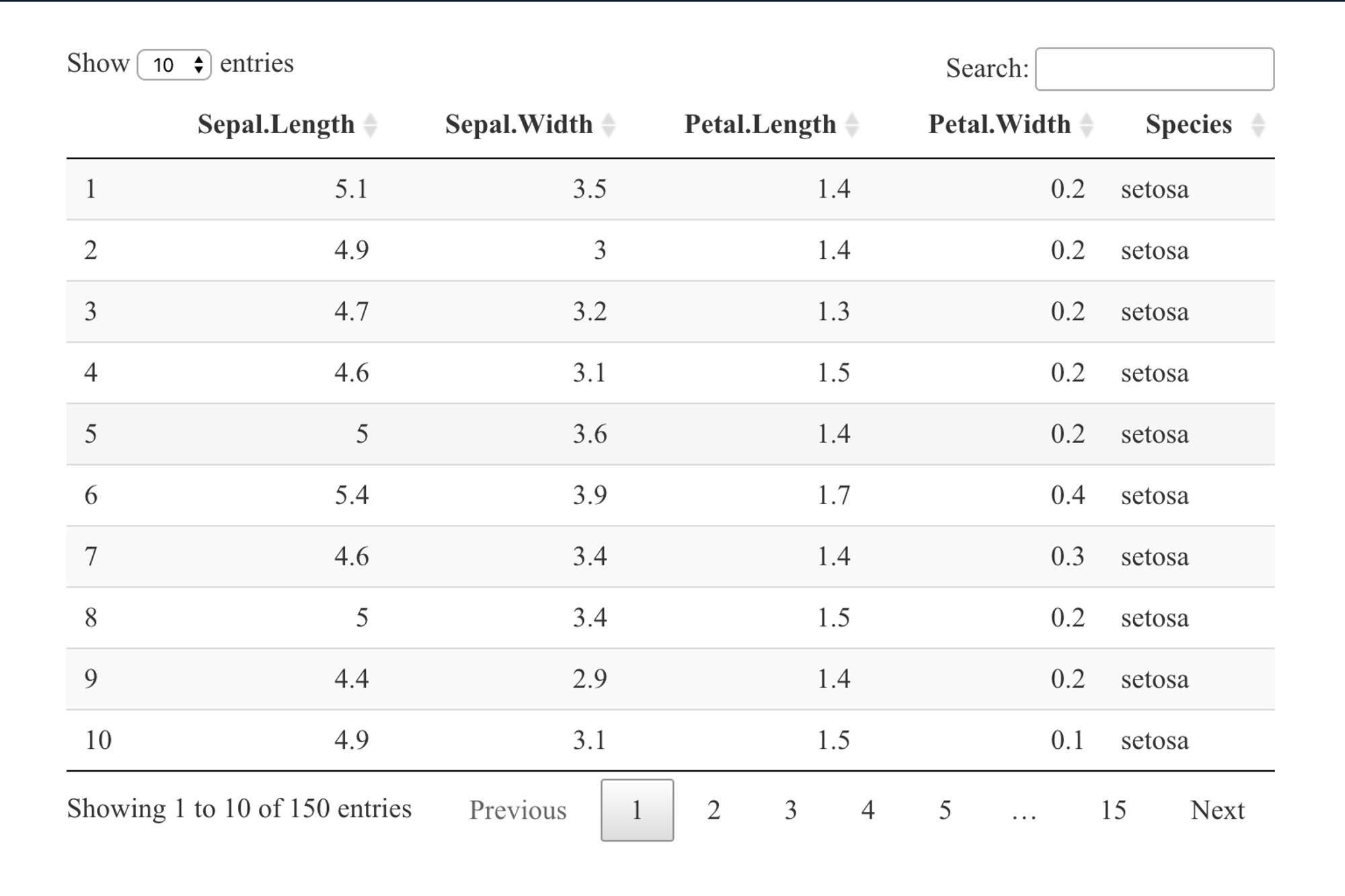

dat2 <- iris
DT::datatable(dat2)

5标注曲线

5.1 简单绘图

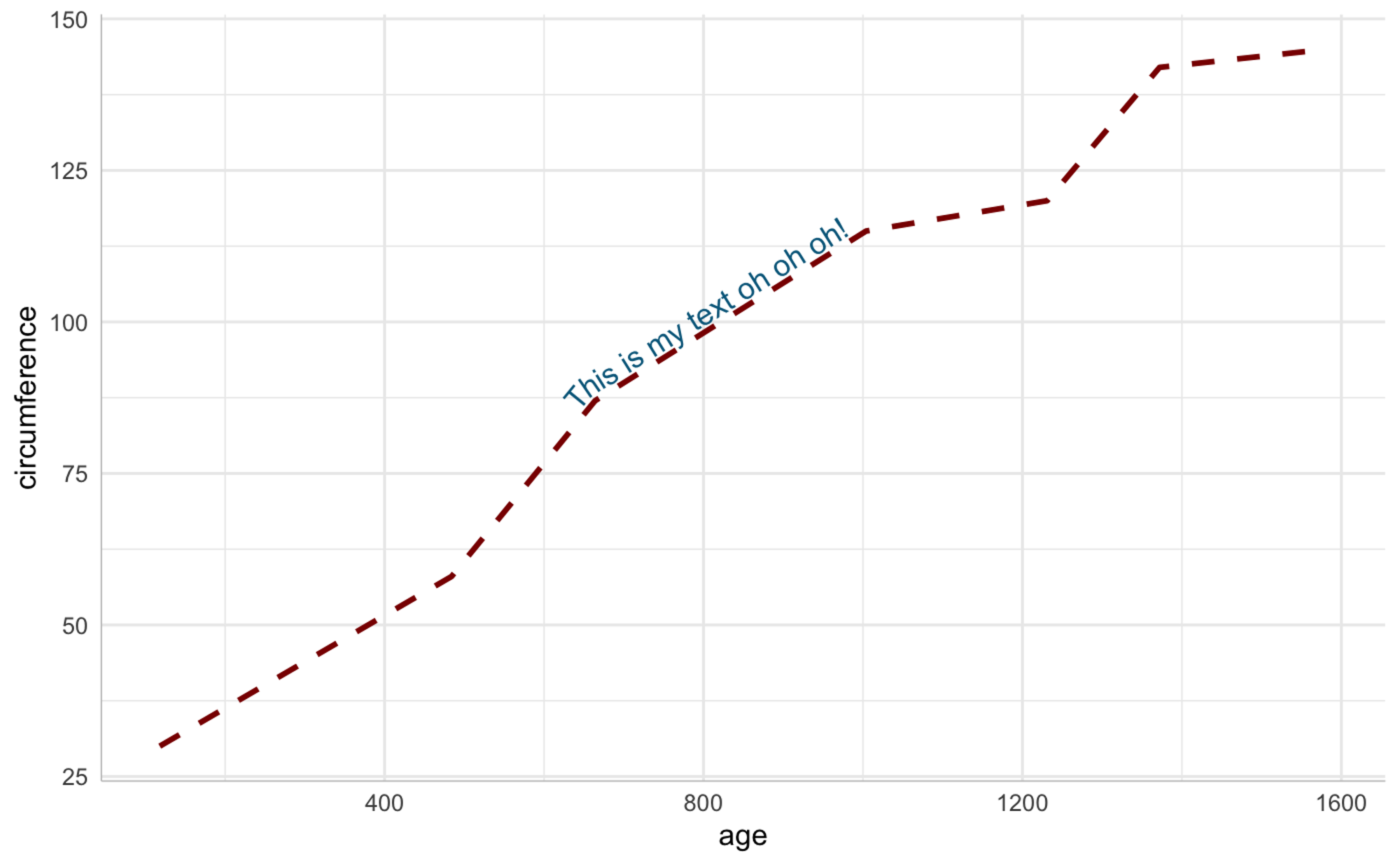

这里用到的是geom_textline函数, 一起看一下吧.🥳

dat1 %>%
dplyr::filter(., Tree == 1) %>%
ggplot(aes(x = age, y = circumference)) +
geom_textline(label = "This is my text oh oh oh!",
size = 4, vjust = -0.2,
linewidth = 1, linecolor = "red4", linetype = 2,
color = "deepskyblue4")

5.2 进阶绘图

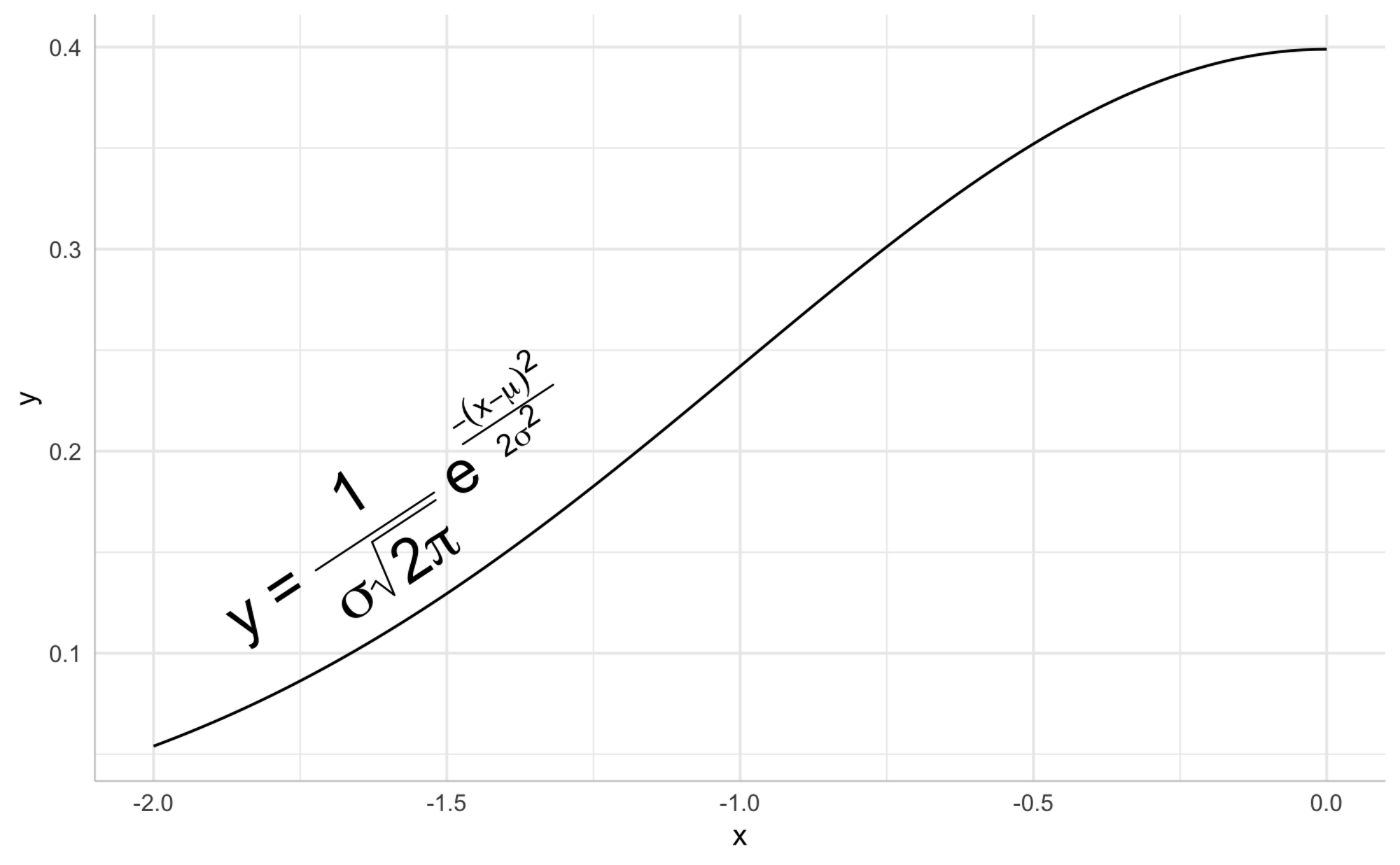

有时候我们还想标注上复杂的公式, 大家可以这样试一下.😏

lab <- expression(paste("y = ", frac(1, sigma*sqrt(2*pi)), " ",
plain(e)^{frac(-(x-mu)^2, 2*sigma^2)}))

df <- data.frame(x = seq(-2, 0, len = 100),
y = dnorm(seq(-2, 0, len = 100)),
z = as.character(lab))
df %>%
ggplot(aes(x, y)) +
geom_textpath(aes(label = z),
vjust = -0.2, hjust = 0.1,
size = 8, parse = T)

6标注densityplot

6.1 绘图

这里用到的是geom_textdensity函数, 我们再改一下颜色主题.🤗

dat2 %>%
ggplot(aes(x = Sepal.Width, colour = Species, label = Species)) +
geom_textdensity(size = 6, fontface = 2, hjust = 0.2, vjust = 0.3) +
scale_color_npg()+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")

6.2 更改文字位置

我们试着把他们改到最大值处.😂

dat2 %>%
ggplot(aes(x = Sepal.Width, colour = Species, label = Species)) +
scale_color_npg()+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")+

geom_textdensity(size = 5, fontface = 2, spacing = 50,
vjust = -0.2, hjust = "ymax") +
ylim(c(0, 1.5))

7标注趋势线

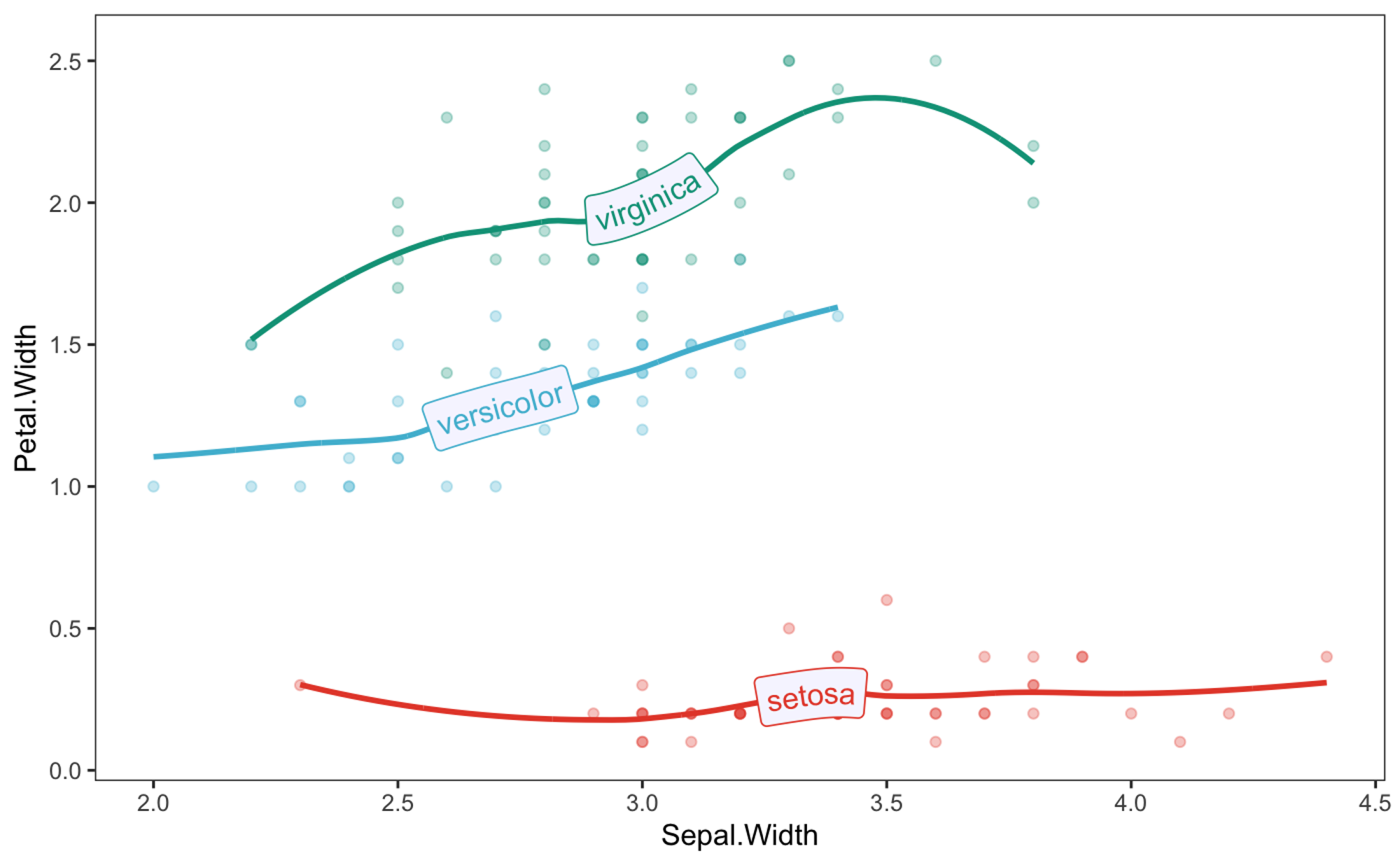

这里用到的是geom_labelsmooth函数, method可选如下:👇

  • "lm";
  • "glm";
  • "gam";
  • "loess";

dat2 %>%
ggplot(aes(x = Sepal.Width, y = Petal.Width, color = Species)) +
geom_point(alpha = 0.3) +
geom_labelsmooth(aes(label = Species),
text_smoothing = 30,
fill = "#F6F6FF", # label背景色
method = "loess",
formula = y ~ x,
size = 4, linewidth = 1,
boxlinewidth = 0.3) +
scale_color_npg()+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")

Note! 这里你也可以使用geom_textsmooth, 大家自己试一下有什么区别吧.😗

8标注contour lines

我们试着在contour lines上标注一下吧, 用到的函数是eom_textcontour.🤩

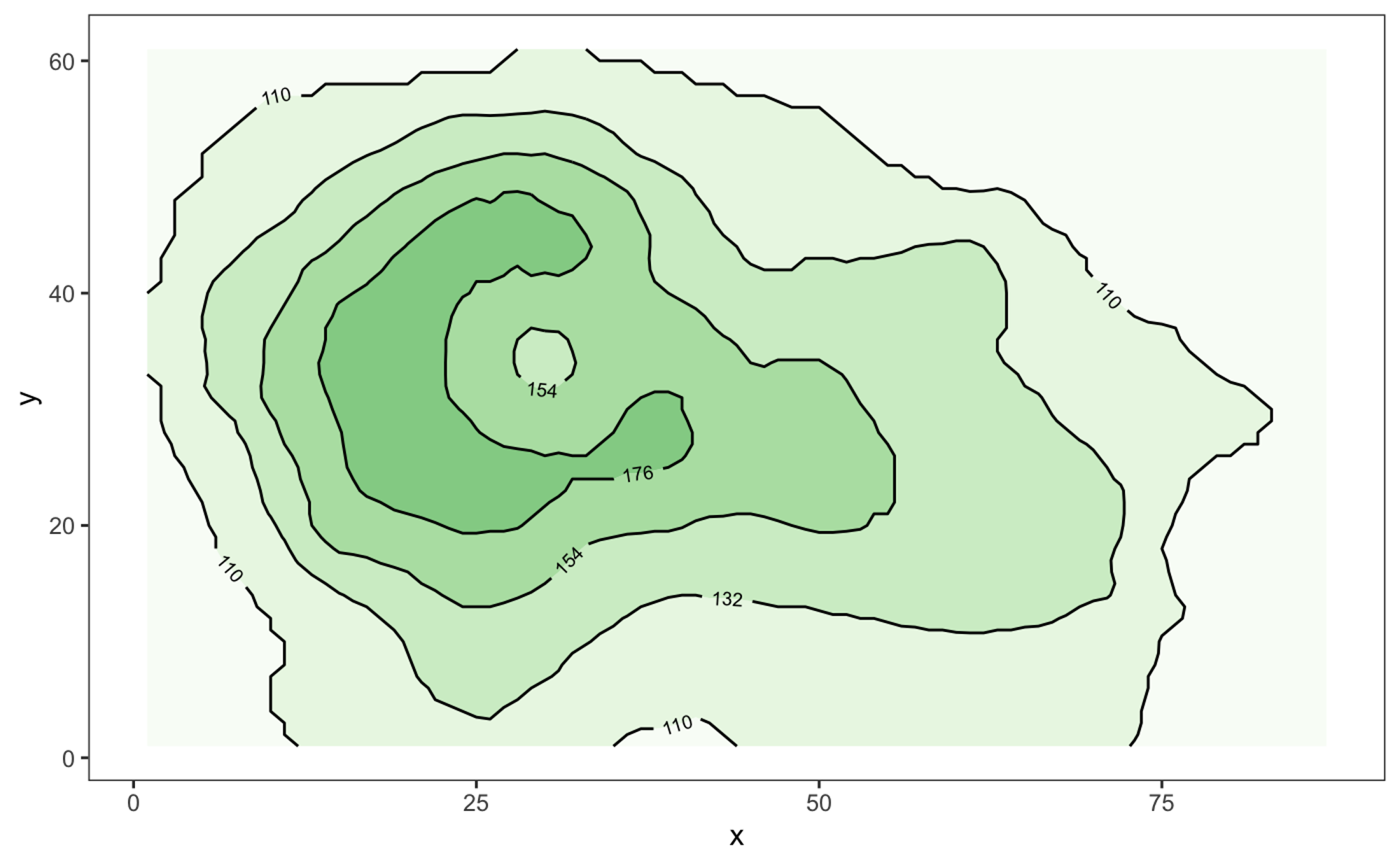

df <- expand.grid(x = seq(nrow(volcano)), y = seq(ncol(volcano)))
df$z <- as.vector(volcano)

ggplot(df, aes(x, y, z = z)) +
geom_contour_filled(bins = 6, alpha = 0.8) +
geom_textcontour(bins = 6, size = 2.5, straight = T) +
scale_fill_manual(values = colorRampPalette(brewer.pal(9,"Greens"))(9))+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")

9标注阈值线

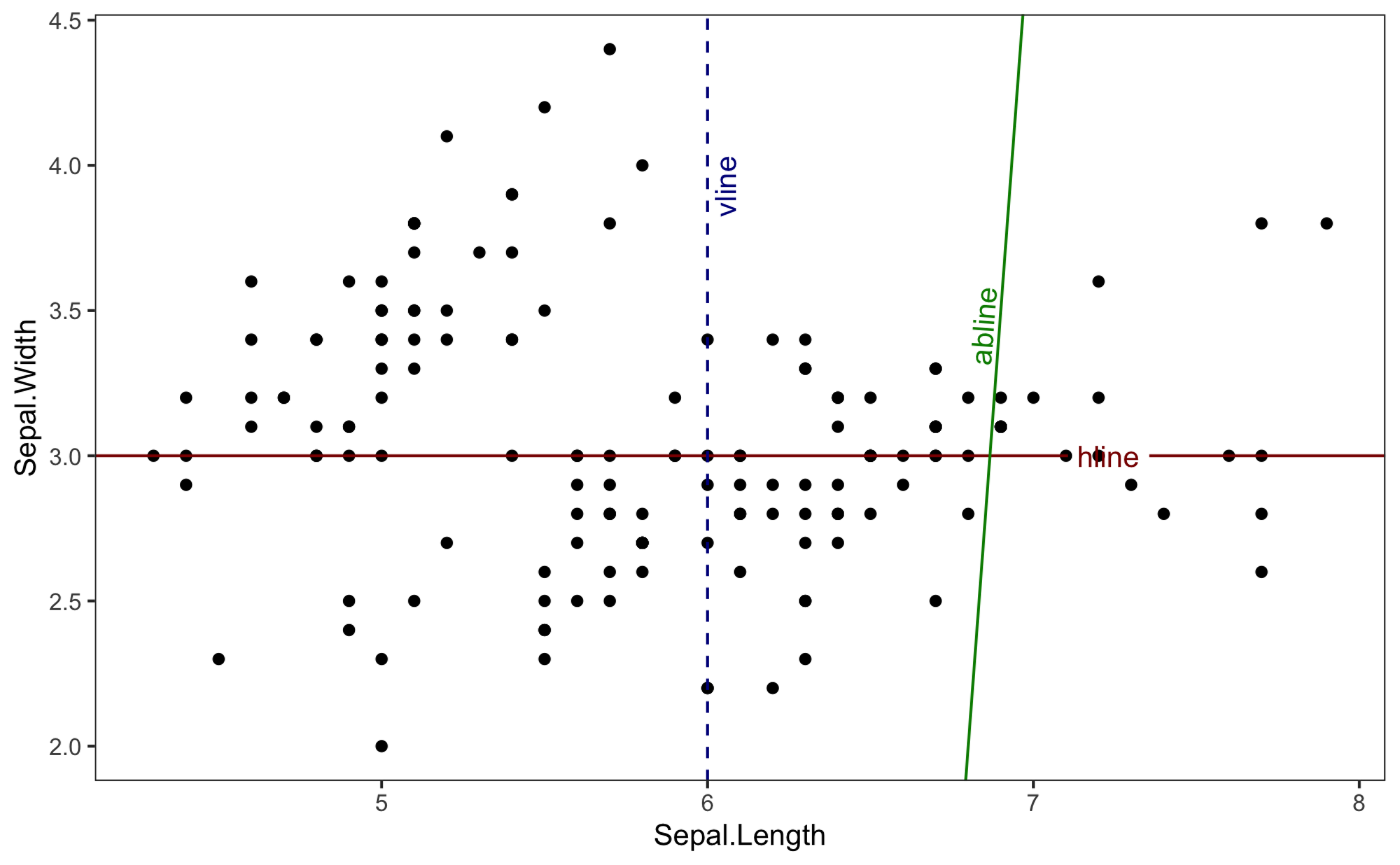

我们在这里可以使用geom_texthline, geom_textvline, geom_textabline来进行各种阈值线的绘制.🤓

dat2 %>%
ggplot(aes(Sepal.Length, Sepal.Width)) +
geom_point() +
geom_texthline(yintercept = 3,
label = "hline",
hjust = 0.8, color = "red4") +
geom_textvline(xintercept = 6,
label = "vline",
hjust = 0.8, color = "blue4",
linetype = 2, vjust = 1.3) +
geom_textabline(slope = 15, intercept = -100,
label = "abline",
color = "green4", hjust = 0.6, vjust = -0.2)+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")

10标注统计学差异

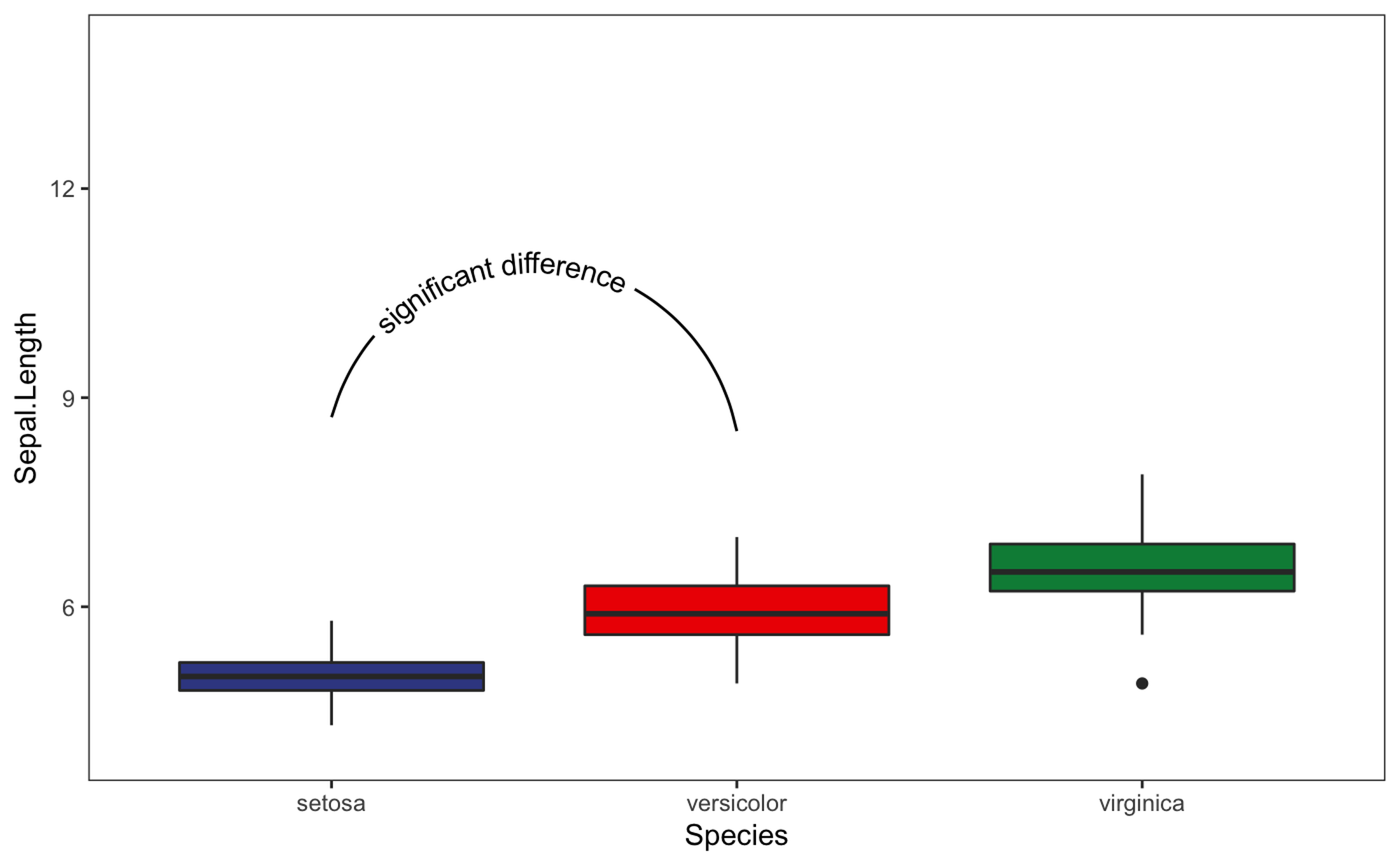

我们常规使用直线或者直接标注*的方式来展示统计学差异.😘
这里我们试试换一种方式来绘图吧.🫢

dat2 %>%
ggplot(aes(x = Species, y = Sepal.Length)) +
geom_boxplot(aes(fill = Species))+
geom_textcurve(data = data.frame(x = 1, xend = 2,
y = 8.72, yend = 8.52),
aes(x, y, xend = xend, yend = yend),
hjust = 0.35, ncp = 20,
curvature = -0.8,
label = "significant difference") +
scale_y_continuous(limits = c(4, 14))+
scale_fill_aaas()+
theme_bw()+
theme(panel.background = element_blank(),
panel.grid = element_blank(),
legend.position = "none")

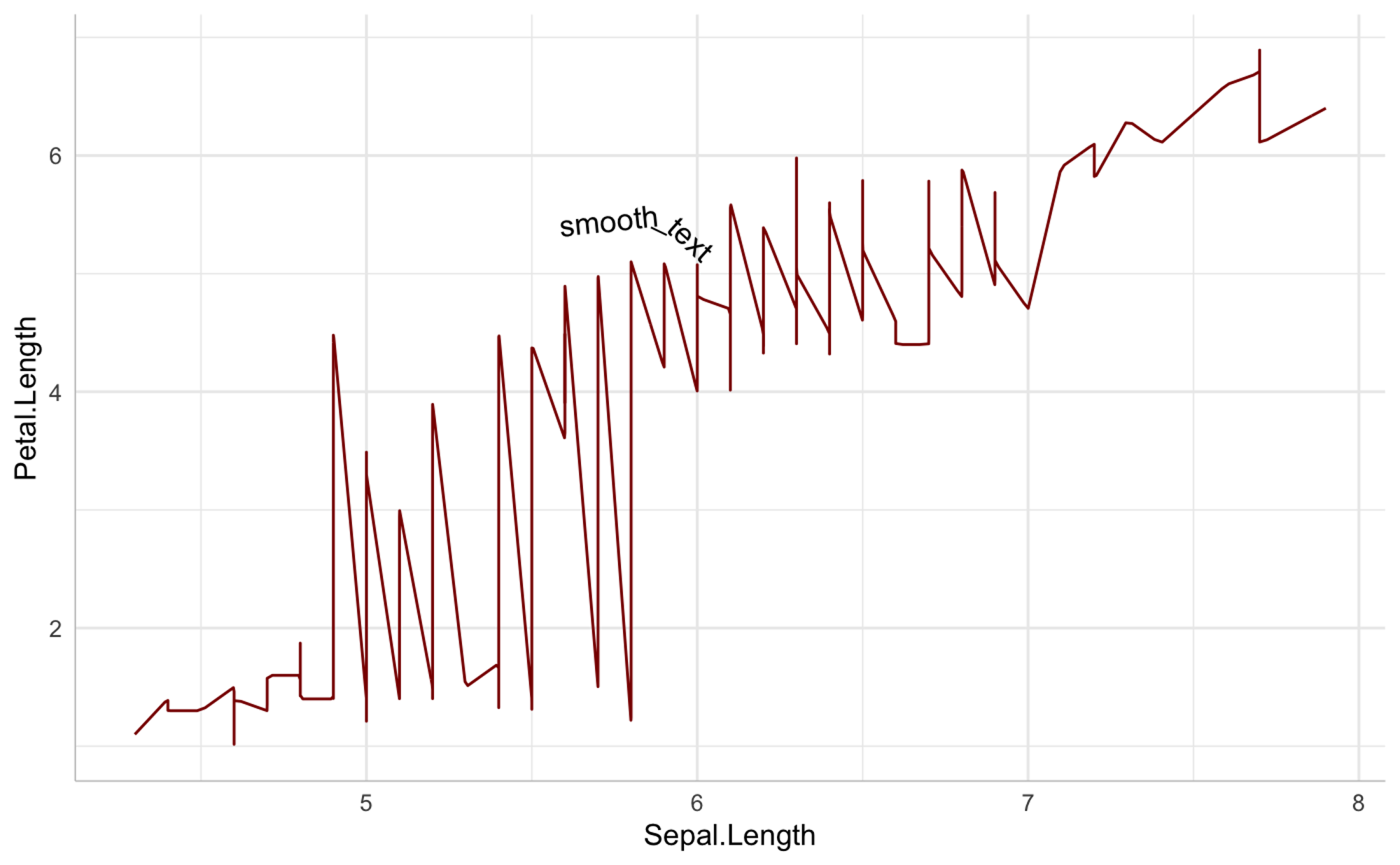

11test_smoothing

有的时候画出来的figure过于尖锐, 不够平滑, 这样就不好标注了, 这里也提供了text_smoothing参数用来解决这个问题, 0 (none) to 100 (maximum), 大家试一下吧, 我在这里先做一个示范.😘

dat2 %>%
ggplot(aes(Sepal.Length, Petal.Length)) +
geom_textline(linecolour = "red4", size = 4, vjust = -7.5,
label = "smooth_text", text_smoothing = 40)

12复杂绘图的坐标轴改变

12.1 初步绘图

我们先画个图, 然后我们再把坐标coord_polar().🤩

p <- data.frame(x1 = c(seq(0, 10/6 * pi, pi/3),
seq(0, 10/6 * pi, 2*pi/3)),
y1 = c(rep(2, 6), rep(-1, 3)),
x2 = c(seq(0, 10/6 * pi, pi/3) + pi/3,
seq(0, 10/6 * pi, 2*pi/3) + 2*pi/3),
y2 = c(rep(4, 6), rep(2, 3)),
group = letters[c(1:6, (1:3) * 2)],
alpha = c(rep(1, 6), rep(0.4, 3))) |>
ggplot(aes(x1, y1)) +
geom_rect(aes(xmin = x1, xmax = x2, ymin = y1, ymax = y2, fill = group,
alpha = alpha),
color = "white", size = 2) +
geom_textpath(data = data.frame(x1 = seq(0, 2 * pi, length = 300),
y1 = rep(0.5, 300),
label = rep(c("A and B", "C and D", "E and F"), each = 100)),
aes(label = label), linetype = 0, size = 8,
upright = TRUE) +
geom_textpath(data = data.frame(x1 = seq(0, 2 * pi, length = 300),
y1 = rep(3, 300),
label = rep(c("apple", "banana", "cucumber", "durian",
"egg", "flower"),
each = 50)),
aes(label = label), linetype = 0, size = 4.6, color = "white",
upright = TRUE) +
scale_y_continuous(limits = c(-5, 4)) +
scale_x_continuous(limits = c(0, 2*pi)) +
scale_fill_npg()+
scale_alpha_identity() +
theme_void() +
theme(legend.position = "none")

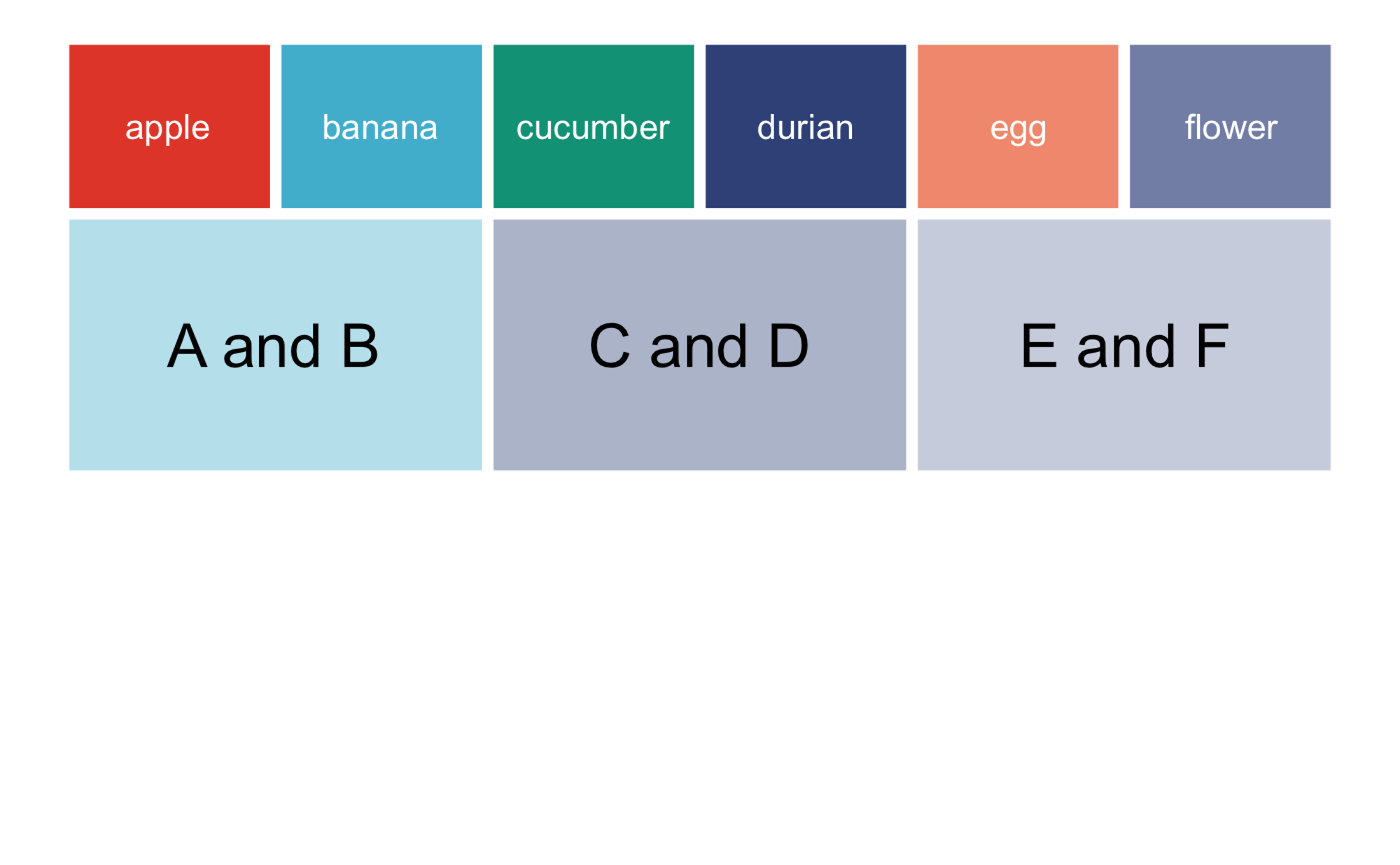

p

12.2 更改坐标系

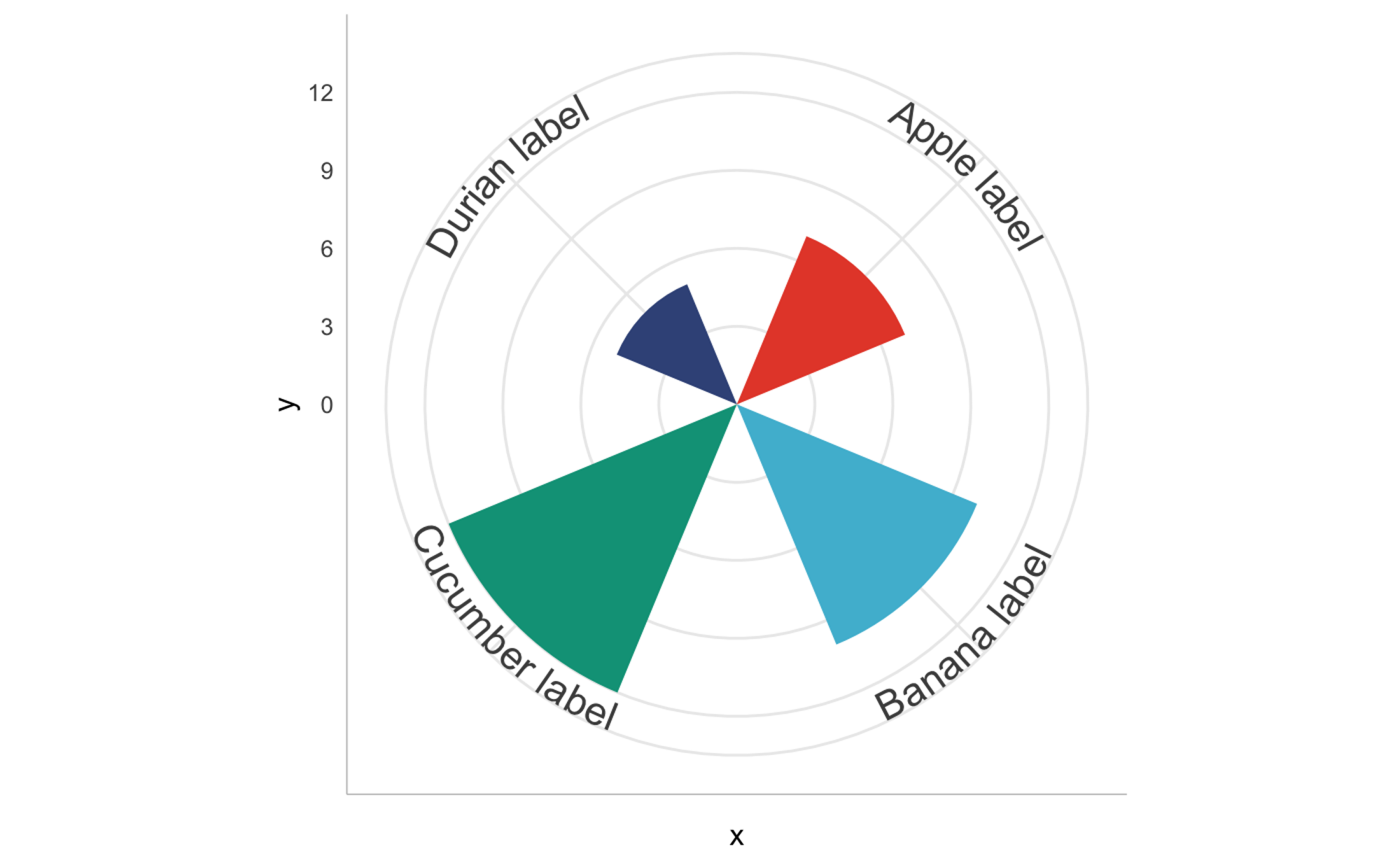

这个包非常强大, 大家完全不用担心使用coord_polar()后, 文字的位置会有改变, 请放心使用!😂

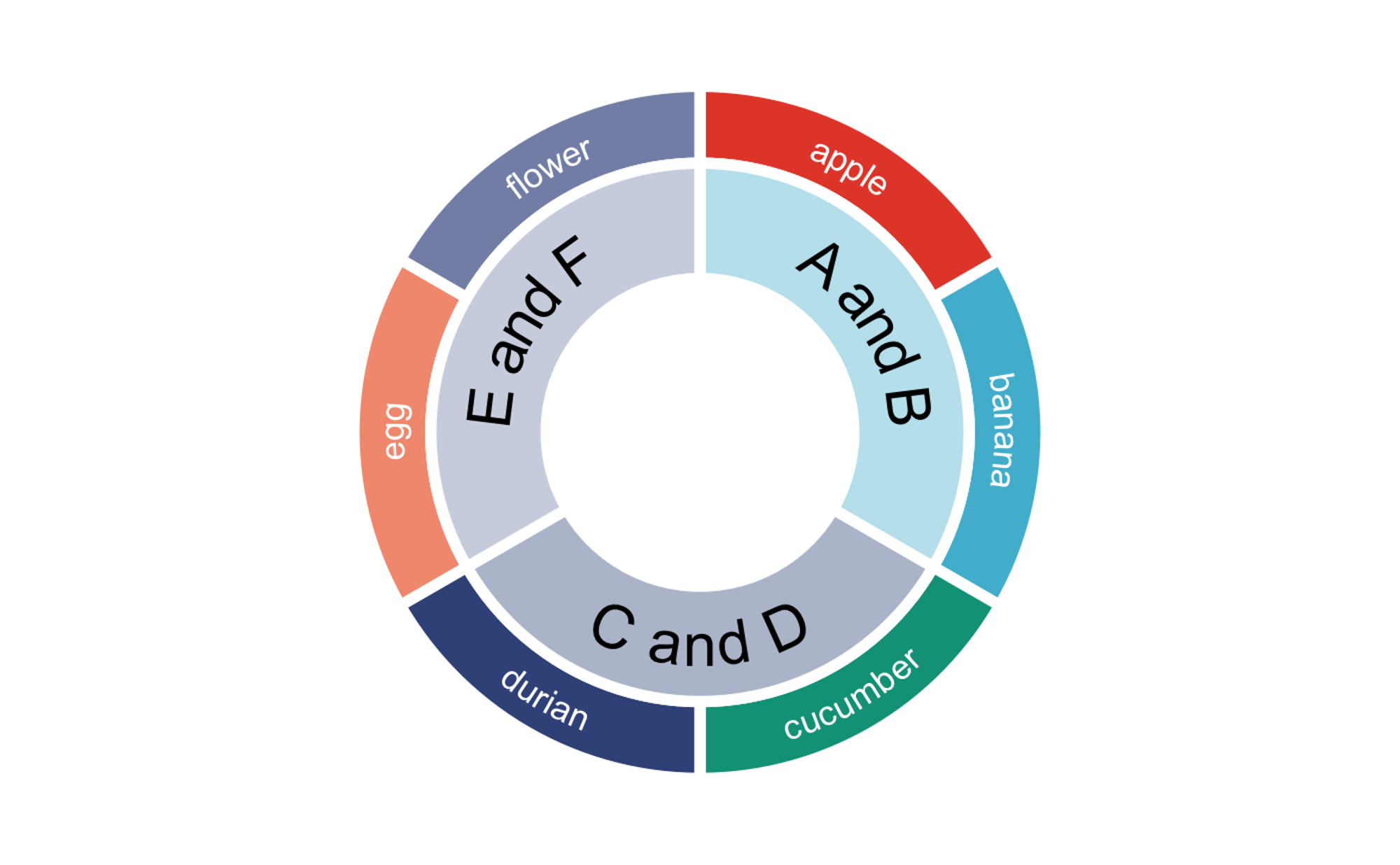

p + coord_polar()

Nice! 这种图无论是在研究型paper还是Review中使用, 都是可以拉高水平的图🌟~


12.3 直接使用coord_curvedpolar()

在这种polar式的坐标系中, 如果标注的文字太长, 我们可以使用coord_curvedpolar(), 要比coord_polar()合适, 大家试一试吧.😉

df <- data.frame(x = c("Apple label", "Banana label",
"Cucumber label", "Durian label"),
y = c(7, 10, 12, 5))

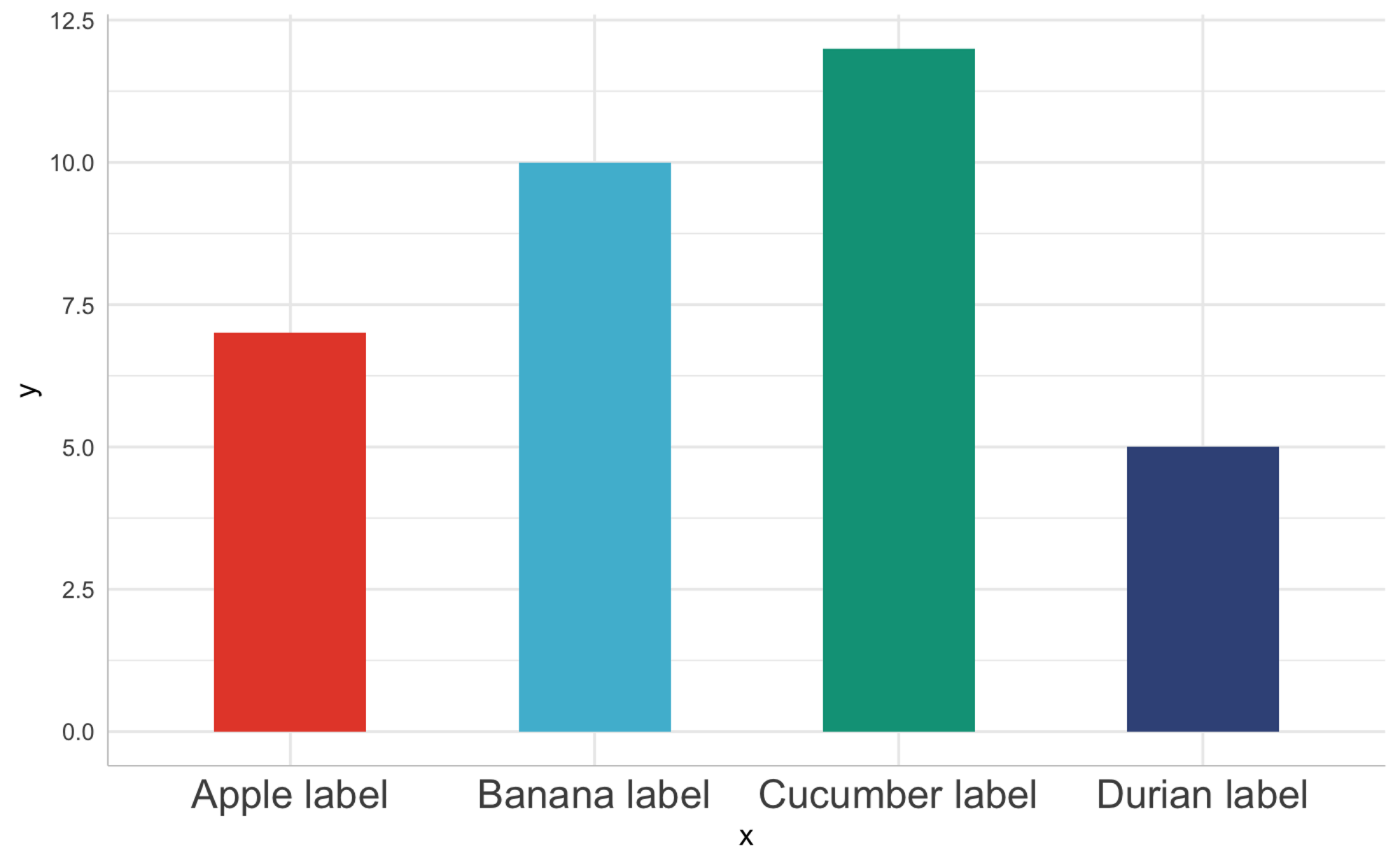

p <- ggplot(df, aes(x, y, fill = x)) +
geom_col(width = 0.5) +
scale_fill_npg()+
theme(axis.text.x = element_text(size = 15),
legend.position = "none")
p

搞定!~🥳🥳🥳

p + coord_curvedpolar()

馒头
最后祝大家早日不卷!~
